How do you connect a P trap to a tailpiece

The drain is connected to your P-trap and plumbing connection hidden within the walls. Tailpiece: Often referred to as the drain tailpiece, this is the section of piping that connects to the drain fitting. It carries water away from the sink.

What is the name of the fitting that connects the P-trap to the drain?

The drain is connected to your P-trap and plumbing connection hidden within the walls. Tailpiece: Often referred to as the drain tailpiece, this is the section of piping that connects to the drain fitting. It carries water away from the sink.

Can you replace metal P trap with PVC?

Purchase a PVC P-trap, pipe and fittings to replace the metal ones. … PVC drain pipe comes in two different diameters: 1 1/4 inches and 1 1/2 inches. Make sure to buy material that’s the same diameter as the metal pipes you just removed.

Can you connect plastic and metal pipe?

To successfully connect plastic and metal pipes, you need threaded connections. The plastic male thread must connect to the metal female thread. If you try to connect it the opposite way – a plastic female to metal male – then the connection will ultimately break or leak.

What is a tailpiece in plumbing?

The tailpiece, or sink tailpiece, is the straight section of pipe that connects to the bottom of the sink drain fitting. … Typically, the tailpiece attaches to the drain fitting with a slip nut—a threaded ring that can be tightened and loosened by hand (or with gentle persuasion from channel-type pliers).

Can you glue P-trap?

PVC pipes under sinks include the P-trap that connects the drain to the house plumbing. Such pipes can be connected using threaded pieces or with glue. Gluing your PVC pipes creates a much stronger and permanent hold that can only be broken by cutting off the pipes.

What is a plumbing trap adapter?

A trap adapter is the fitting that joins the pipe to the tubing at the trap arm side of the p-trap. A slip joint is comprised of a male thread, a slip joint washer and a slip joint nut. In an ABS system the adapter is plastic, and in an iron system it is brass.

What is a PVC P-Trap?

What is a P-trap? … It traps debris that has drained from the sink and prevents it from forming a clog deep within the plumbing system, and to stops sewer gases from passing into the home. P-traps can be made from PVC pipe or steel, the latter is often used for exposed plumbing as it looks more attractive.

How do you attach a tailpiece to a bathroom sink?

Insert the new tailpiece into the sink trap. Position the sink trap and new tailpiece in line underneath the sink drain. Thread the slip nut over the sink drain to connect the tailpiece. Thread the slip nut to the sink trap and tighten both slip nuts with the channel lock pliers.

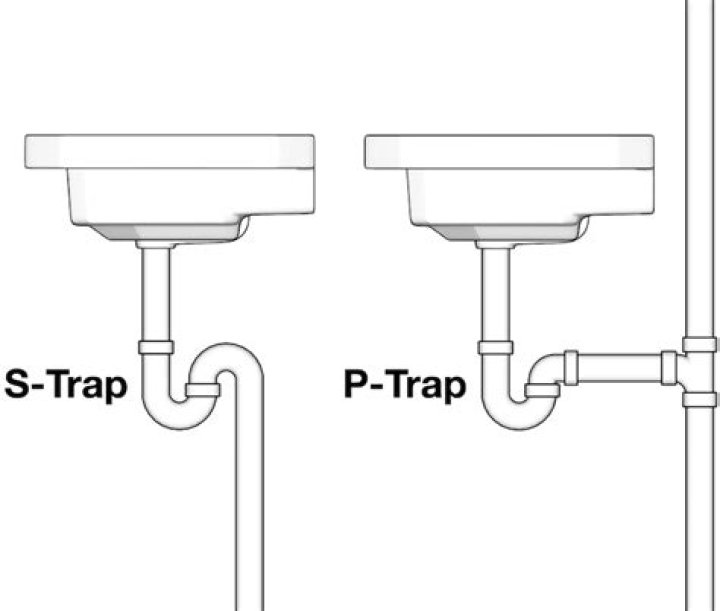

How does P trap connect to wall?

The P trap is curved into a loop, or J bend, that retains a small amount of water as a seal. The P trap connects to a horizontal pipe that connects to the drain pipe in the wall. Drain pipes under and connecting to a sink can rust, break or simply get bumped and loosened when moving things in and out from underneath.

Article first time published on

How do you assemble chrome P-trap?

Slide the slip nut that comes with the trap assembly up the tailpiece, fit the washer around the end of the tailpiece, and slide it up about an inch. Push the trap opening up against the washer, slide the nut down, and screw it to the threads on the trap. Tighten the nut with adjustable pliers.

Are all P traps the same size?

When replacing a pP-trap, you should use the same type of trap you remove. Traps are made from polypropylene (white or black), ABS (black), PVC (white) or brass (either chrome-plated or natural colored). Traps come in 1-1/4 inch (standard bathroom sink) or 1-1/2 inch (standard kitchen sink) inside diameter sizes.

How do you stop a sink tailpiece from leaking?

Leaking tailpieces usually allow water to seep out of its connections. Tightening the slip nuts or replacing the plastic slip washers should correct this problem.

How do you attach plastic to metal?

Epoxy seems to be the best all-around general adhesive that works on most surfaces, including plastic and metal. The epoxy will create a high-strength bond that is both impact-resistant and resistant to water, chemicals, and heat. Epoxy usually comes in two components, a hardener, and epoxy.

How do you seal plastic to metal plumbing?

When creating plastic to metal threaded joints, you’ll need to use a sealer/lubricant. Doing so will help lubricate fittings making it easier to screw the mail and into the female: it will also help seal the joint and guard against leaks.

What is the purpose of a tailpiece?

While the primary function of the tailpiece is to connect the strings to the end of your stringed instrument, tailpiece can have a significant effect on the sound and playability of your instrument.

How long does a sink tailpiece need to be?

Maximum Distance However, the Universal Plumbing Code stipulates that the total developed length of all tailpieces, arms and fittings connecting the drain to the p-trap must be 24 inches or less.
