Where is the wheel cylinder located?

Where is the wheel cylinder located?

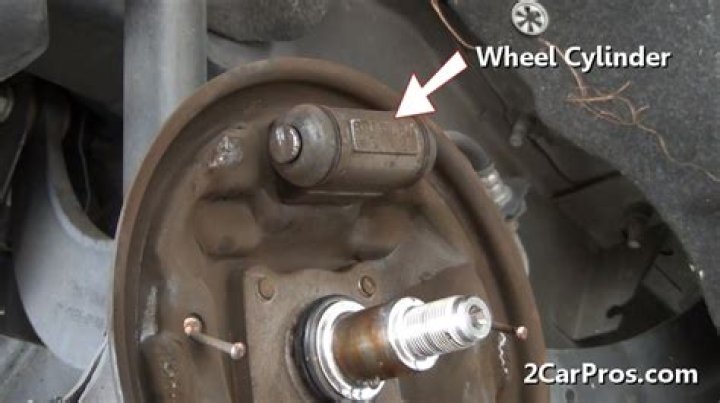

A wheel cylinder is a component of a hydraulic drum brake system. It is located in each wheel and is usually positioned at the top of the wheel, above the shoes. Its function is to exert force onto the shoes so as to bring them into contact with the drum and stop the vehicle with friction.

Do I have to bleed brakes after changing master cylinder?

After you change your brake/clutch master cylinder kit or replace the master cylinder assembly, you must bleed air/fluid to prevent ‘trapped air’ in the system after installing. There would be an ‘air pocket’ in the line. Make sure that you have brake fluid in your master cylinder reservoir.

Do you have to bleed brakes after changing wheel cylinder?

Since you removed the brake lines and the brake wheel cylinder does not have brake fluid inside, you’ll have to bleed the brake system. To complete this step, follow the recommended steps in your vehicle’s service manual as each vehicle is unique. Make sure the pedal is firm before completing this step.

What are the symptoms of a bad brake master cylinder?

Symptoms of a Bad or Failing Brake Master Cylinder Common signs of a faulty brake master cylinder include abnormal brake pedal behavior, contaminated brake fluid, and the Check Engine Light turning on. by Ed Ruelas on January 04, 2016 1.

When does the master cylinder start to work?

Contrarily, the master cylinder found in every modern car today begins to operate when the brake pedal is pressed. It pushes the fluid from the reservoirs to the lines in the braking system, which exerts pressure on the brakes.

How does a brake booster work on a master cylinder?

Brake Booster connecting the brake pedal and the master cylinder, is known to suppress the high fluid pressure by the use of vacuum stored in it. In fact, with this booster, the driver doesn’t have to exert extra pressure on the pedal, while stopping or reducing the speed of the vehicle.

How does check valve on master cylinder work?

The check valve is responsible for controlling the pressure inside the master cylinder. If this valve starts creating a problem then, it turns the soft and smooth pedal into the aggressive and hard brake pedal. So, whenever it gets difficult to engage the brake pedal, seek its inspection from the certified mechanic.

How can I check the brake fluid in my master cylinder?

To check the brake fluid in your master cylinder, follow these steps: 1 Open the brake fluid reservoir on top of your master cylinder. If you have the kind with a little plastic bottle on top, just unscrew the cap on the little plastic bottle that sits on top of the master cylinder.

What causes a brake master cylinder to turn brown?

Contaminated brake fluid. Another symptom of a bad brake master cylinder is contaminated brake fluid. Brake master cylinders use rubber seals which can break down and wear out over time. When they do, they can contaminate the brake fluid and will turn it dark brown or black color.
