What kind of trusses are there

Gable Trusses. A variety of the trusses shown above fit into the common or gable truss category, including the King Post, Queen Post, Howe, and Double Howe trusses. … Hip Truss. … Scissor Roof Truss. … Attic Truss. … Mono Truss. … North Light Roof Truss. … Flat Truss. … Gambrel Truss.

How many types of trusses are there?

There are two basic types of truss: The pitched truss, or common truss, is characterized by its triangular shape. It is most often used for roof construction. Some common trusses are named according to their “web configuration”.

What are common trusses?

Common (or standard) trusses are symmetrical. A truss with the same pitch and heel on both sides and a peak at the center is called a common truss. Girder trusses are designed to carry additional loads other than standard roof loads.

Which style of roof truss is the strongest?

No Single Strongest Truss No single style of truss is intrinsically stronger than another. The most common styles, Fink or W and Howe or K, along with a related type called fan, are the basis for most truss styles. All have angled top rafter chords and horizontal bottom beams or chords.

What is a truss and its types?

Simple truss – indicates a single triangular truss. These trusses are most often used as the roof trusses. Planar truss – as the name implies it is a two dimensional truss. Space frame truss – Contrast to planar truss, the members and the nodes are located in the three dimensional space. …

What is AK truss?

Definition of K truss : a building truss in which the vertical member and two oblique members in each panel form a K.

What are the 4 types of trusses?

• Gable Trusses. …
• Hip Truss. …

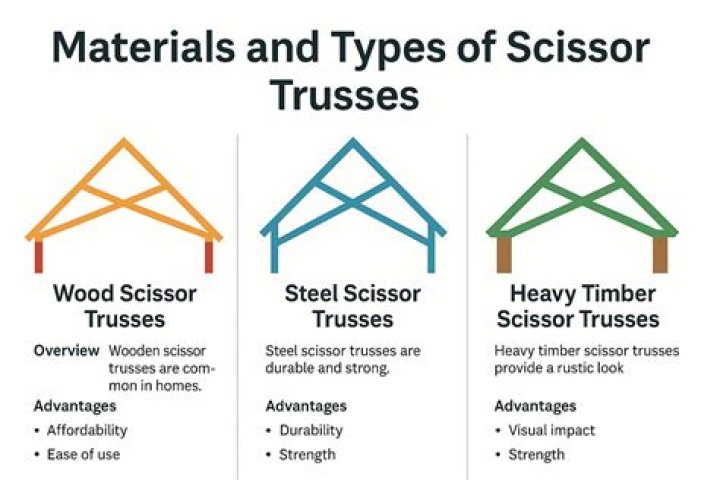

• Scissor Roof Truss. …
• Attic Truss. …
• Mono Truss. …
• North Light Roof Truss. …
• Flat Truss. …
• Gambrel Truss.

Is it cheaper to build or buy trusses?

Lower cost – Building with roof trusses is 30% to 50% cheaper than building a stick roof.

What is the average cost of a roof truss?

Roof Truss Prices For a 2,000-square-foot home, roof truss installation typically costs between $7,200 and $12,000. You’ll spend anywhere from $1.50 to $4.50 per square foot of building area for materials alone, or between $35 and $150 per truss, though extremely long and complex types can reach $400 each.

Are trusses cheaper than rafters?

Price: When the cost of a prefabricated truss package is compared to the material and labor costs to build rafters on site, the cost of trusses is 30% to 50% less.

Article first time published on

Can I make my own roof trusses?

Yes. 2x4s are commonly used to build trusses for smaller structures like carports, detached garages, and sheds. How big of a truss do I need for a 10×16 shed? The bottom chord of the truss will need to be the same length as the floor of the shed, plus 0.25 inches to ensure a proper fit.

What are attic trusses?

An attic truss is typically used to support a peaked roof. An attic truss is a support feature found in many home or building attics. … The queen attic truss system is often used to transform an attic space from a simple storage unit into a usable living space by freeing up space in the center of the attic.

What are Web trusses?

A Web Joist is a pin-connected truss manufactured with wood chords and steel webs. Web Joist have been used successfully in many projects. It is a very economical floor and roof system when compared to other construction materials; especially when ceiling, decking, floor fill materials and labor costs are considered.

What is a perfect truss?

Concept: Perfect truss: A truss that has got enough members to resist the loads without undergoing deformation in its shape is called a perfect truss. The triangular truss is the simplest perfect truss and it has three joints and three members.

What is a pony truss?

: a truss (as in bridge building) so low that overhead bracing cannot be used.

How many types of truss bridges are there?

4 Types of Truss Bridges: Which is Worth the Weight? The four most basic categories in the truss bridge arena are the Warren, Pratt, Howe and K Truss. Each utilises the basic ‘triangle’ design, characteristic of the truss bridge, however, each varies slightly in the way they distribute compression and tension.

What is a rafter vs truss?

While rafters are constructed in a stick framing pattern, trusses feature chords on the top and bottom and an arrangement of webbing which allows it to distribute the load more broadly to the outside walls.

Why is the Pratt truss good?

Pratt Truss This simplifies and produces a more efficient design since the steel in the diagonal members (in tension) can be reduced. This has a few effects – it reduces the cost of the structure due to more efficient members, reduces the self-weight, and eases the constructability of the structure.

What are piggyback trusses?

Piggyback trusses are basically filler trusses to fill in a roof space at “T” roof junctions. When supported on the end wall of a building they are called “Gable Ends”.

What is Baltimore truss?

The Baltimore truss is a subclass of the Pratt truss. A Baltimore truss has additional bracing in the lower section of the truss to prevent buckling in the compression members and to control deflection. It is mainly used for train bridges, boasting a simple and very strong design.

What is a Howe truss bridge?

A Howe truss is a truss bridge consisting of chords, verticals, and diagonals whose vertical members are in tension and whose diagonal members are in compression. The Howe truss was invented by William Howe in 1840, and was widely used as a bridge in the mid to late 1800s.

Who designed the K truss?

The K-Truss truss configuration was invented by Phelps Johnson, president of the Dominion Bridge Company of Montreal, Quebec, Canada, as part of the design effort for the second (existing) Quebec Bridge. Phelps was born in 1849 in the United States and worked for the Wrought Iron Bridge Company for a time.

What is the cheapest roof to build?

Generally, a gable-style roof with asphalt roofing shingles is one of the most affordable roofs you can build on a residential home. Asphalt shingles typically cost $150-$400 per square foot, excluding installation costs. Simplifying your roof design and lowering its pitch can also help you save money.

What are standard truss sizes?

Going by those numbers, it stands to reason that a 32′ truss is the average size of a truss for a home in the US. The most commonly used trusses in residential construction are fink – or standard – roof trusses.

What size trusses do I need?

4′ oc 25-5-0-5 psf Truss Member Sizing (No ceiling)Dimensional Lumber Required2x4 Flat oc20’2×4 #272″24’2×4 #272″30’2×6 #272″

Are trusses or rafters stronger?

Once in place, rafters use up more wood, so they weigh more, but trusses are stronger because they are more efficient and have the capacity to produce maximum strength using fewer materials in the end.

What is purlin and rafter?

Purlin is a horizontal beam or bar used for structural support in structures, most often below the roof. Purlins are supported either by the building’s rafters or its walls. These are most commonly used in metal buildings, but in wood-frame structures, these also replace closely packed rafters.

Do you need a ridge beam with trusses?

Manufactured roof trusses do not need a ridge rafter or ridge beam. They have triangulation built into them, so any additional structural members to resist the lateral loads are not necessary.

How much weight can roof trusses hold?

According to the IRC, the minimum live load capacity of a roof truss for non-sleeping areas should be around 40 pounds per square foot. Again, if it’s built for sleeping areas, it should be around 30 pounds per square foot.

What is the difference between trusses and joists?

While much different in design and function, joists and trusses are often used together in construction projects. While joists support the weight of floors and ceilings, trusses have a wide variety of applications, including supporting roofs and in bridge design.

What is the strongest truss design?

In this experiment we have tested which type of truss bridge is the strongest, yet uses the least amount of material. Two of the most used truss bridges are of the Pratt and Howe design. Through our experiment it was found that the bridge design that minimized the maximum compression force was the Howe Bridge.
