What is the function of the FCS field in an Ethernet frame

A frame check sequence (FCS) is an error-detecting code added to a frame in a communication protocol. Frames are used to send payload data from a source to a destination.

What is the use of FCS?

FCS is a technique basically used for spatial and temporal analysis of molecular interactions of extremely low-concentration biomolecules in solution.

What is the purpose of the frame check sequence FCS in an Ethernet frame group of answer choices?

Frame check sequence (FCS) refers to the extra bits and characters added to data packets for error detection and control. Network data is transmitted in frames.

What is the FCS and what function S does it perform?

Fluorescence correlation spectroscopy (FCS) is frequently used to monitor molecular interactions (binding and unbinding), chemical reaction kinetics and diffusion constants of fluorescent molecules.

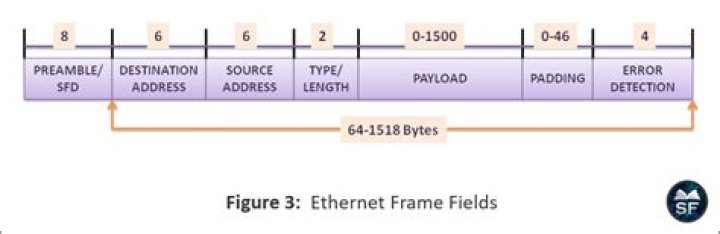

What are the fields in an Ethernet frame?

Ethernet header contains five fields; Preamble, SFD, Destination, Source, and Type. Let’s understand each field in detail.

What is the purpose of the frame check sequence FCS in an Ethernet frame quizlet?

What is the purpose of the Frame Check Sequence (FCS) field? It detects errors in an Ethernet frame.

What is FCS field?

The FCS field contains a number that is calculated by the source node based on the data in the frame. This number is added to the end of a frame that is sent. … If the two numbers are different, an error is assumed and the frame is discarded. The FCS provides error detection only.

How do I fix FCS errors?

1. If possible, hard set the speed and duplex settings on both the port and the connected device. …
2. Check the cable with a tester or replace it with a known good cable. …
3. Check the NIC drivers on the end device to make sure they support the required duplex and speed settings.

What is CRC and FCS?

The FCS field contains a checksum value which uses by receiving side to prove that the data is not corrupted in the middle. The algorithm that is used to generate the FCS is a Cyclic Redundancy Check(CRC). The CRC algorithm is used by a number of technologies, and not restricted to networking.

What is FCS error on Link?

Basic definition: An FCS error is a legal sized frame with a bad frame check sequence (CRC error). An FCS error can be caused by a duplex mismatch, faulty NIC or driver, cabling, hub, or induced noise. What you should do to fix this problem: Cause 1: FCS errors can be caused by a duplex mismatch on a link.

Article first time published on

How many bytes are in FCS to detect errors in a frame?

The IEEE 802.15. 4 uses 16-bit FCS based on the International Telecommunication Union (ITU) Cyclic Redundancy Check (CRC) to detect possible errors in the data packet [5].

What is CRC in frame?

CAN data frames and remote frames contain a safeguard based on a CRC polynomial: The transmitter calculates a check sum from the transmitted bits and provides the result within the frame in the CRC field.

Which field would not be found in an Ethernet frame?

Although length field is missing in Ethernet II frame, the frame length is known by virtue of the frame being accepted by the network interface.

What is preamble in Ethernet?

The preamble consists of a 56-bit (seven-byte) pattern of alternating 1 and 0 bits, allowing devices on the network to easily synchronize their receiver clocks, providing bit-level synchronization. It is followed by the SFD to provide byte-level synchronization and to mark a new incoming frame.

What is the difference between the Ethernet frame preamble field and the IEEE 802.3 preamble and start of frame delimiter fields?

Preamble: This offers synchronization since both sender and receiver interface cards are running with different system clocks. Start frame delimiter: This tells the Ethernet software where to start reading the frame. Destination address: The Media Access Control (MAC) address where this frame is supposed to go.

What does the CRC value in the FCS field in the frame do?

Explanation: The CRC value in the FCS field of the received frame is compared to the computed CRC value of that frame, in order to verify the integrity of the frame. If the two values do not match, then the frame is discarded.

Which field in the frame provides error detection functionality?

The Frame Check Sequence (FCS) field (4 bytes) is used to detect errors in a frame.

What role does ARP play in the routing process?

What role does ARP play in the routing process? If a router does not know a destination device’s MAC address, it sends an ARP broadcast containing the IP address and requesting the MAC address. … Routers use ARP to resolve known IP addresses into MAC addresses by broadcasting requests to the network.

What is the maximum transmission distance of 1000baset?

It is designed to run on twisted pair copper cables over various categories. These copper cable categories are Cat5, Cat5e, Cat6 and Cat6A. This standard can also be run using cables such as Cat7, Cat7A and Cat8. The maximum distance for 1000Base-T transmission is 328 feet (100 meters).

How large is the FCS field of an Ethernet II frame?

The Frame Check Sequence (FCS) field (4 bytes) is used to detect errors in a frame.

What causes CRC errors on Ethernet?

Common Causes/Solutions: CRC errors can be caused by a number of factors. Typically they are caused by either defective cable, transceiver (SFP), switch port, upstream network device, etc. To address this error, try replacing the cable or transceiver (SFP) and check the switch port/upstream network device.

Which three fields are found in an 802.3 Ethernet frame choose three?

The fields of an Ethernet frame are the preamble, destination and source address, length, data, and FCS.

Are FCS errors bad?

Excessive errors usually indicate a problem. When operating at half-duplex setting, some data link errors such as Frame Check Sequence (FCS), alignment, runts, and collisions are normal. Generally, a one percent ratio of errors to total traffic is acceptable for half-duplex connections.

What causes internal Mac receive errors?

MAC receive errors can indicate the malfunction of an ethernet card on the subnet. You can identify the subnet and possibly the unit in question from the MAC address and the IP number.

What are symbol errors?

A Symbol error means that the interface has detected an undefined or invalid symbol that has been received. You may get symbol errors without getting CRC errors.

What division is FCS football?

Current season, competition or edition: The NCAA Division I Football Championship Subdivision (FCS), formerly known as Division I-AA, is the second-highest level of college football in the United States, after the Football Bowl Subdivision.

Is a 2 bytes or 4 bytes Frame Check Sequence for error detection and the standard code code used is CRC?

Payload: This carries the data from the network layer. The maximum length of the payload field is 1500 bytes. FCS: It is a 2 byte or 4 bytes frame check sequence for error detection. The standard code used is CRC (cyclic redundancy code).

At which layer of OSI is the frame check sequence for error detection?

At which layer of OSI is the Frame Check Sequence for error detection performed? (At layer 2 (data link layer), the Frame Check Sequence for error detection is performed.

What is FCS error on mikrotik?

The FCS error was what the router was reporting when the switch was locked up. That cable had been used before with another manufacture’s switch, and the switch never locked up. The cable is a direct connect type where the modules that go into the router and switch are part of the cable.

What is XMIT ERR?

A transmit error (that is, Xmit-Err) occurs when a port’s transmit buffer overflows. A speed mismatch between inbound and outbound links often results in a transmit error. Rcv-Err. A receive error (that is, Rcv-Err) occurs when a port’s receive buffer overflows.

Why is CRC located at the tail of the packet?

You are correct: placing the CRC at the end of a frame reduces packet latency and reduces hardware buffering requirements. On the transmit side, hardware can read and transmit bytes of the frame immediately.
