What is elastic potential energy equation

Answer Not Found

What is the formula for elastic potential energy?

The spring constant is the measure of stiffness of a spring. Hooke’s law gives us the force we need to find elastic potential energy. Looking at a graph of force versus displacement, we can find that the formula for elastic potential energy is PE = 1/2(kx^2).

What is elastic potential energy in physics?

Elastic potential energy is energy stored as a result of applying a force to deform an elastic object. The energy is stored until the force is removed and the object springs back to its original shape, doing work in the process. … The coil spring of a wind-up clock.

What is the equation for elastic potential energy GCSE?

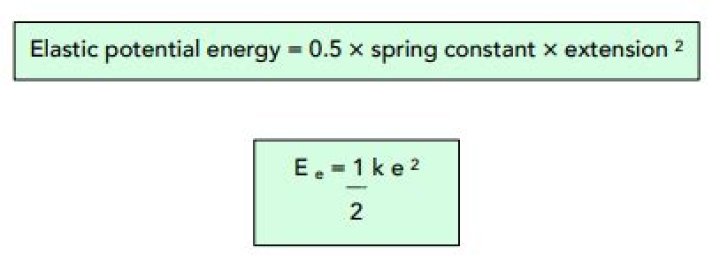

The more an elastic material is stretched, the greater the elastic potential energy store. The amount of elastic potential energy stored in a stretched spring can be calculated using the equation: elastic potential energy = 0.5 × spring constant × (extension) Ee = 1/2 k e.

What does K stand for in elastic potential energy equation?

elastic potential energy (E e) is measured in joules (J) spring constant (k) is measured in newtons per metre (N/m) extension (e), referring to the increase in length, is measured in metres (m)

What is the equation for kinetic energy *?

Kinetic energy is directly proportional to the mass of the object and to the square of its velocity: K.E. = 1/2 m v2. If the mass has units of kilograms and the velocity of meters per second, the kinetic energy has units of kilograms-meters squared per second squared.

How do you calculate elastic potential energy BBC Bitesize?

Work is done when a spring is extended or compressed . Elastic potential energy is stored in the spring. …
The elastic potential energy stored can be calculated using the equation:
elastic potential energy = 0.5 × spring constant × (extension) 2

How do I calculate potential energy?

Simplified, this formula can be written as: Potential Energy = mgh, where m is the mass, measured in kilograms; g is the acceleration due to gravity (9.8 m/s^2 at the surface of the Earth); and h is the height, measured in meters.

What is elastic energy ks3?

Elastic potential energy When a rubber ball is stretched or squashed, it can regain its shape again. Elastic potential energy is stored in stretched or squashed materials. Elastic potential energy will be stored in this catapult when its bands are stretched.

What is the equation for the potential energy stored in a spring when it is stretched or compressed?

Potential Energy of a Spring Formula String potential energy = force × distance of displacement. Also, the force is equal to the spring constant × displacement. P.E.

Article first time published on

What is the work done equation?

To express this concept mathematically, the work W is equal to the force f times the distance d, or W = fd. If the force is being exerted at an angle θ to the displacement, the work done is W = fd cos θ.

What is K and U in physics?

The work-energy theorem discussed in Chapter 7 relates the amount of work W to the change in the kinetic energy of the system. W = [Delta]K. The change in the potential energy of the system can now be related to the amount of work done on the system. [Delta]U = – [Delta]K = – W.

What is the K in 1 2kx 2?

The potential energy stored in a spring is given by PEel=12kx2 PE el = 1 2 k x 2 , where k is the spring constant and x is the displacement. Deformation can also be converted into thermal energy or cause an object to begin oscillating.

What is the value of k in potential energy?

The values of kinetic energy (K) and potential energy (U) are measured as follows K = 300.0 + 7.0 J, U = 500.0 + 9.0 J.

What is elastic potential energy BBC?

A force acting on an object may cause the shape of an object to change. Elastic objects can store elastic potential energy if they are stretched or squashed. … When work is done, energy is transferred, and this energy is stored as elastic potential energy.

What is potential energy BBC Bitesize?

Gravitational potential energy is the energy an object has by virtue of its position above the surface of the Earth. When an object is lifted, work is done.

Is elastic energy potential or kinetic?

Elastic energy is a form of potential energy, because it is stored in the bonds between atoms in an object or substance when it is temporarily under stress. This stress could be due to the object being stretched or squashed.

What is kinetic energy and potential energy?

Potential energy is the stored energy in any object or system by virtue of its position or arrangement of parts. However, it isn’t affected by the environment outside of the object or system, such as air or height. On the other hand, kinetic energy is the energy of an object or a system’s particles in motion.

What is the equation for gravitational potential energy stored?

The equation for gravitational potential energy is GPE = mgh, where m is the mass in kilograms, g is the acceleration due to gravity (9.8 on Earth), and h is the height above the ground in meters.

What two factors are needed to calculate elastic potential energy?

Elastic potential energy is equal to the force times the distance of movement. Elastic potential energy = force x distance of displacement. Because the force is = spring constant x displacement, then the Elastic potential energy = spring constant x displacement squared.

What is elastic potential energy affected by?

Gravitational potential energy depends on an object’s weight and its height above the ground (GPE = weight x height). Elastic potential energy is due to an object’s shape. It results when an elastic object is stretched or compressed. The more it is stretched or compressed, the greater its elastic potential energy is.

How do you calculate potential energy in simple harmonic motion?

Answer: a) purely kinetic. At the mean position, the velocity of the particle in S.H.M. is maximum and displacement is minimum, that is, x=0. Therefore, P.E. =1/2 K x2 = 0 and K.E. = 1/2 k ( a2 – x2) = 1/2 k ( a2 – o2) = 1/2 ka2. Thus, the total energy in simple harmonic motion is purely kinetic.

What is the difference between elastic potential energy and gravitational potential energy?

What is the difference between gravitational and elastic potential energy? Gravitational potential energy is always negative while the elastic potential energy is always positive. Gravitational potential energy depends on the mass of the object, but elastic potential energy does not depend on the mass.

What is potential energy in physics class 9?

Potential energy is the energy that is stored in an object due to its position or configuration. For example, an object possesses gravitational potential energy if it is positioned at a height above (or below) the reference level. … Obtain the expression for potential energy.

What is the elastic potential energy stored in a spring?

Elastic potential energy is the potential energy stored by stretching or compressing an elastic object by an external force such as the stretching of a spring. It is equal to the work done to stretch the spring which depends on the spring constant k and the distance stretched.

How much elastic potential energy is stored in the spring?

The elastic potential energy of a spring is one half the product of its spring constant multiplied by the square of its extension or compression. or Page 2 6/3/14 2 Energy may be stored in a system when work is done on the system. When you apply a force to a spring, it deforms.

How do you calculate elastic energy stored in a wire?

Work done on the wire during stretching = average force x extension = ½ Fe. …
work done = energy stored = ½ Fe = ½ EAe2/L. …
Energy stored = ½ F[e2 – e1] = ½ EA[e22 – e12]/L. …
Energy stored per unit volume of a specimen = ½ stress x strain.

What do you mean by work energy theorem?

The principle of work and kinetic energy (also known as the work-energy theorem) states that the work done by the sum of all forces acting on a particle equals the change in the kinetic energy of the particle.

What's the equation for efficiency?

The work efficiency formula is efficiency = output / input, and you can multiply the result by 100 to get work efficiency as a percentage.

What is work and example?

Work is force applied over distance. Examples of work include lifting an object against the Earth’s gravitation, driving a car up a hill, and pulling down a captive helium balloon. Work is a mechanical manifestation of energy. The standard unit of work is the joule (J), equivalent to a newton – meter (N · m).

What is U and V in kinematics?

They are often referred to as the SUVAT equations, where “SUVAT” is an acronym from the variables: s = displacement, u = initial velocity, v = final velocity, a = acceleration, t = time.
