What is adaptive defrost control

Adaptive Defrost (Frost Guard) Definition: Adaptive Defrost means that the refrigerator will only defrost as needed. It accounts for door openings and usage to determine when it is necessary to defrost and how long the defrost cycle needs to run.

How does adaptive defrost control work?

Adaptive defrost controls shut off the refrigerator cooling devices and redirect power to the defrost heater during the defrost cycle. After the defrost cycle is over, the adaptive defrost controls redirect power to the compressor and the fans.

What is an ADC board in refrigerator?

The “Jazz” control board is what Whirlpool (makers of Amana and Maytag appliances) calls the Adaptive Defrost Control (ADC) board used in some models of french door and bottom-mount Maytag and Amana refrigerators. … The compressor should shut off during defrost.

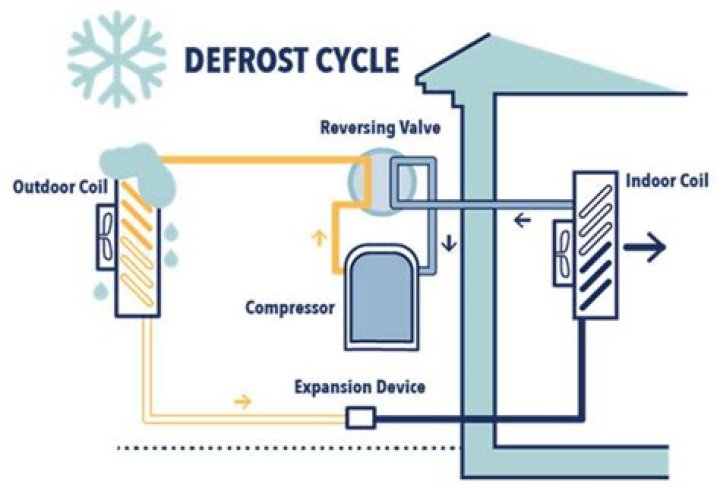

Why are defrost controls used?

A defrost control tells the reversing valve when to send hot refrigerant outdoors to thaw the outdoor coil during the winter. During the defrost cycle, your auxiliary heat takes over, which reduces the heat pump’s overall efficiency by up to 10 percent.

What happens when a defrost thermostat goes bad?

Defrost Thermostat Specifications. … A faulty defrost termination thermostat may result in the defrost heater never heating and a solid frost buildup on the evaporator coil, which results in too warm temperatures. The thermostat contacts are normally closed and have continuity until it reaches 140 degrees.

How often should you defrost a fridge?

As a general idea, we would recommend defrosting the whole appliance at least once or twice a year. Or, when you can see around a quarter of an inch of ice build-up on the walls.

How do you know if your refrigerator control board is bad?

Symptoms of a bad control board vary from cooling problems, erratic behavior, or the fridge not working at all. … So if the compressor stops, the freon wont circulate, and the fridge will not cool whatsoever, even if the lights are on, the fans are blowing, and it seems like the fridge is running.

How often should you defrost a walk in freezer?

Walk-in freezers are usually designed to defrost once or twice a day. The more humid and warm a location, the more defrosts will be needed. If a system needs to be defrosted more frequently, add only one additional defrost period at a time and monitor the results.

What happens during a refrigerator defrost cycle?

A defrost cycle runs when the heating component attached to the evaporator coil is activated. During the defrost, the coil runs hot to melt accumulated frost and ice, which allows the evaporator to resume its optimal heat absorption and freezer cabinet cooling functions.

How do you put a Maytag refrigerator in defrost mode?

First of all, open the fridge’s door and hold the switch unless you see the display go blank. Then, press the minus button three times within the span of ten seconds before you release the door switch. If it shows d and f, press the minus button again, and the force defrost mode will be conformed.

Article first time published on

How do I bypass defrost timer?

Connect the common wire and the compressor wire together and that will cause the compressor to run 100% of the time unless the thermostat turns it off or you manually turn it off, completely by-passing the defrost timer. Leave the other wires connected to the timer so they’re out of the way.

Can a fridge work without a thermostat?

You can run a fridge without a thermostat. A thermostat is just an on/off switch for the compressor. When the temp reaches the point that you set it at, it goes one.

Is a defrost thermostat normally open or closed?

The defrost thermostat should be in the closed position when cold. Check to be sure the thermostat is opening at the correct temperature by placing it in water and slowly heating the water. Defrost thermostats are designed to open between 40 degrees and 90 degrees Fahrenheit.

How long should a refrigerator control board last?

Basic refrigerator7 years or fewerQuality refrigeratorsUp to 17 years

Can a refrigerator control board be repaired?

We professionally repair broken or obsolete GE/General Electric refrigerator control boards for consumer and appliance repair service businesses. We offer a 1-Business day turnaround. … This is a service to repair and upgrade your GE refrigerator control board (part number WR55X10942P).

What causes a defrost board to go bad?

Your heat pump works hard to keep your house warm, and its defrost system can lead to extra wear and tear on your unit if it’s not working properly. This pressure on your system can cause your defrost board to fail. The defrost controls are subject to extreme outdoor temperature swings, humidity and voltage variations.

Why does my heat pump keep going into defrost mode?

Common Causes for Your Heat Pump’s Defrost Mode Faulty thermostat. Wiring that is going bad. Damage to the outdoor coil. Bad reversing valve.

How do you test a defrost control board?

Checking the Defrost Sensor Remove power from the condenser. Find and remove the defrost sensor from the condenser and unplug it from the control board. Place the sensor in a container of ice water and using your multimeter, ohm across the terminals, the sensor should read zero ohms (closed).

Where does the water go when you defrost a freezer?

During the defrosting process, the fridge’s temperature increases, causing frost and any ice to melt. This is the first transformation, from solid — the frozen state — to liquid, when it becomes water. Thanks to its liquid state and gravity, the water enters the drain and travels down the hose.

Why is my freezer icing up?

Ice buildup occurs when warm or humid air comes in contact with the cold evaporator coils in your freezer (such as when you open the freezer door on a hot day). … If enough ice builds up on the coils, the flow of cool air in the freezer can become limited.

How long should the defrost cycle last?

There are timers built into the computer control of the system that restrict how often defrosting can occur. Generally, a unit must run for a minimum of about 35 minutes after starting up before completing its first defrost. From there, defrosts should occur no more often than approximately every 40 minutes.

How long does a refrigerator take to defrost?

Do Plan Well in Advance – Most fridges take at least eight hours to defrost, but it’s better to err on the side of caution and give it a full day to complete the process. Do Take All the Food Out Before Defrosting – This will help you avoid water logging the food and make the defrost process go a little quicker.

What is the difference between frost free and automatic defrost?

Frost Free refers to the freezers with a dynamic cooling system. Automatic Defrost refers to the freezers with direct or fan-assisted cooling systems. … There is ice build-up on the inside freezer walls, and you have to remove it periodically.

How many types of defrost system are there?

There are two major methods of defrosting. These include: Automatic defrost and Manual defrost. In each, the idea is to prevent the build-up of ice crystals inside the refrigerator.

Which component is turned off while defrost heater is Energised?

This facilitates the melting of frost on the finned coil surface, using room air. In other types of scheduled or forced defrost schemes, the evaporator fans shut off while defrost heaters are energized during the defrost period initiated by the timer.

How long is the defrost cycle on a Frigidaire refrigerator?

Frigidaire ADC systems run defrost cycles of about 30 minutes, with between six and 72 hours of compressor run time between cycles.

How do I put my Whirlpool fridge into defrost mode?

To run a forced defrost cycle open the refrigerator door or doors if your refrigerator is a french door model. Then hold down the door switch or switches, the display should go blank. Next press the refrigerator temperature (-) button 3 times in 10 seconds and release the door switches.

Where is the defrost thermostat on a Whirlpool refrigerator?

The defrost thermostat is located behind the back panel in the freezer section. Once your refrigerator has been unplugged, the next step is to give yourself clear access to that back panel.

How often does a Maytag refrigerator defrost?

Cycle Defrost: The refrigerator fresh food section defrosts automatically by means of a thermostat affixed to the evaporator coils every time the unit cycles off (usually every 20-30 minutes).

How long is the defrost cycle on a Maytag refrigerator?

This is an 8 hour and 21 minute timer. In other words it goes into a defrost cycle every 8 hours of compressor run time and stays in defrost for 21 minutes. If you need more assistance, you can resubmit your question with more details.

How does a fridge Auto defrost?

Auto-defrost refrigeration units are designed with a fan on the compressor and an electric timer for an efficient operation. The timer controls the fan to blow the cold air in the unit, as well as the heating elements to melt any built up frost.
