What is a TPR extension

Temperature/pressure-relief or TPR valves are safety devices installed on water heating appliances, such as boilers and domestic water supply heaters. TPRs are designed to automatically release water in the event that pressure or temperature in the water tank exceeds safe levels.

Who installs TPR valve?

TPR valves are cheap and the installation is not very expensive. Total cost for parts and professional installation by a licensed plumber is between $150 and $300 dollars. Homeowners can also install TPR valves themselves for about $20.

Do tankless water heaters have TPR valves?

Gas-fired tankless water heaters will usually require a pressure relief valve, while electric on-demand water heaters may not. The manufacturers typically only require a pressure relief valve, not the combination temperature and pressure relief valve that is necessary for tank-type water heaters.

How do you extend a water heater line?

Simply unscrew the old drain line, measure and cut the new line, then screw the new line in place. You’ll need two wrenches, and some PTFE tape (or whatever your preferred pipe dope is). Place one wrench on the TPR valve, to prevent the valve from moving (a pipe wrench works well).

How does a TPR valve work?

Temperature/pressure-relief or TPR valves are safety devices installed on water heating appliances, such as boilers and domestic water supply heaters. TPRs are designed to automatically release water in the event that pressure or temperature in the water tank exceeds safe levels.

Can PVC be used for TPR valve?

Can you use PVC pipe for the water heater temperature pressure relief (TPR) discharge pipe? No. PVC pipe is not rated by the building code for use with hot water, so the installation shown above is wrong and unsafe. … Pipe materials that are rated for hot water include CPVC, copper, galvanized, and PEX.

Do electric water heaters have TPR valves?

The TPR valves are installed either on the top of a unit or on the side of water heaters. The extension tailpipe, also called a discharge pipe, should terminate no more than six inches off of the floor, per building safety codes. Photo of a TPR valve at top of an electric water heater (in the center):

Can you put PRV into waste pipe?

The hotun® tundish can also be used for providing a visual indicator which will allow connection of a PRV directly into internal waste pipes or soil stacks. Discharge pipework must be 32mm downstream of the hotun® tundish and be installed in line with the guidance provided within the boiler installation instructions.

Where are TPR valves located?

The TPR valve is a special safety valve and it’s responsible for making sure your hot temperature-pressure relief valve water tank stays within its designed temperature and pressure limits. It’s located on top or on the side near the top of your water heater.

Are expansion tanks required for tankless water heater?

Does a tankless water heater require a thermal expansion tank? No. According to the 2018 International Plumbing Code (IPC) section 608.3, tankless water heaters do not require a thermal expansion tank when no water storage device is used.

Article first time published on

What is code for water heater pressure relief valve?

Item 10 requires the relief valve to terminate no more than 6 inches (152mm) above the floor surface, a waste receptor or floor drain in order to prevent hot water discharge from being directed onto a building occupant that may be nearby.

Why are pressure relief valves on water heaters inadequate?

First, conditions inside of the tank may reach dangerous levels. Those elevated levels could lead to small or large breaks in the tank, including major explosions. Second, the valves could cause water leaks, which in turn could create structural problems inside of the effected buildings.

What is a TPR pipe?

A TPR (Temperature and pressure-relief) is installed on water heaters, such as tank water heaters and boilers. TPRs are made to automatically release water if the temperature or pressure inside the tank exceeds safe levels. When the TPR valve opens, scalding water is released from the tank.

Can I use CPVC for TPR valve?

CPVC remains a permitted material for TPR discharge.

How do I know if my T&P valve is bad?

Flooding: Water should never be gushing from the valve. …
Excessive noise: If your water heater is rattling or emitting a high-pitched whistling noise, it’s likely the sound of steam trying to escape the tank, which is a sign of far too much pressure pressing against the inner walls.

What is the purpose of the TPR valve on a hot water heater?

The purpose of the temperature pressure relief valve is to release water, and in turn lower the pressure inside the tank, in the event that the temperature or pressure gets too high in your water heater.

Where is TPR valve on hot water heater?

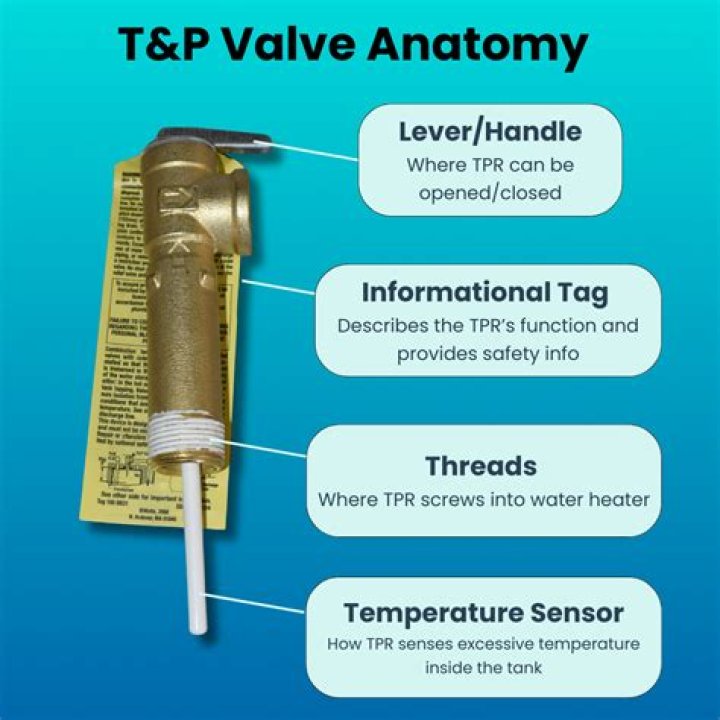

Also known as the temperature/pressure relief valve, or the TPR valve, this valve is located near the top of the water heater. It usually features a lever you can lift up or down and has a discharge pipe that runs from the valve down to the water heater’s base.

What causes too much pressure in hot water heater?

There’s a safety valve in every water heater, called the Temperature and Pressure Relief Valve, or a T&P relief valve. In short, when the temperature or pressure of the water heater gets too high, the valve opens, and releases water that’s causing the increase in pressure.

Can you put PRV into condensate?

It is now possible for the PRV discharge to be directly connected to the internal waste. The condensate drain can be connected below the tundish. Ideal Boilers give advice on how to do this in one of their technical bulletins (AD 117), this hotun installation guidance tells you all you need to know.

Why is my water heater draining outside?

If there is too much pressure in the tank, or the water becomes too hot, this valve will drain some of the water out of the tank. If this T/P valve is the source of your leak, you will most likely be able to see water running down the side of your tank from the valve.

Can I use CPVC for water heater?

Tank-Style Water Heaters CPVC piping is rated for hot water heater installation, we highly recommend talking with a professional plumber before replacing the water inlet and outlet lines with CPVC or PVC. Although, it may be technically possible, if done correctly, it also could be a code violation in your area.

What is the temperature of hot water?

The EPA recommends 120 degrees because it’s hot enough to keep diseases at bay, it’s not hot enough to cause scalding, it will supply enough hot water for most small families and is relatively energy-efficient. However, the best setting for you could vary based on a few factors.

Why is my new pressure relief valve leaking?

Your water heater’s relief valve can start leaking for one of two reasons: either the valve was triggered to open because of excessive temperature or pressure, or the valve itself is faulty. … If the problem is a faulty valve, then you might have an actual leak.

How do I fix a leaking pressure relief valve?

Use a pipe wrench to unscrew the old pressure relief valve. Wrap Teflon tape around the threads of the new valve, and screw it in until tight, orienting the overflow pipe opening away from the tank. Reattach the relief valve drain pipe using Teflon tape on the threads.

What temperature can waste pipe take?

Terrain soil and waste systems may be used to convey liquids with a maximum temperature of 76 degrees when subjected to continuous flow. Intermittent discharges of up to 100 degrees Celsius may occur provided they are of less than two minutes duration.

What temperature can overflow pipe take?

Useable for both hot and cold applications with a maximum working temperature of 70c, when exposed to a continuous flow.

Is waste pipe heat resistant?

Osma PVC-C solvent weld waste is suitable for both interior and exterior use and is designed to withstand higher in-service temperatures. It has UV and heat resistance as well as fire retardant properties.

What's the purpose of an expansion tank on a water heater?

The expansion tank is designed to handle the thermal expansion of water as it heats up in the water heater, preventing excessive water pressure. If water pressure gets to high it can damage valves in plumbing fixtures, joints in supply pipes and the water heater itself.

What happens when expansion tank fails?

Oftenthe diaphragm dividing the two systems will fail, causing the two systems to become one. When this happens, the expansion tank turns into a “dead leg” that will eventually cause damage and premature failure to your water heater.

How long does an expansion tank last?

The average life of your tank can be anywhere between five and 10 years. You can extend the life of your expansion tank by making sure that your home’s water pressure matches the air pressure in your expansion tank. But in some cases, you’ll need to replace it.

Can you terminate the TPR temperature pressure relief valve discharge pipe to the water heater pan?

system or outside of the building with the end of the pipe not exceeding 2 feet (610 mm) and not less than 6 inches (152 mm) above the ground and pointing downwards. … (6) The terminal end of the pipe shall not be threaded. (7) Discharge from a relief valve into a water heater pan shall be prohibited.
