What is a server SPN

A service principal name (SPN) is a unique identifier of a service instance. SPNs are used by Kerberos authentication to associate a service instance with a service logon account. This allows a client application to request that the service authenticate an account even if the client does not have the account name.

What is SPN in Active Directory?

A Service Principal Name (SPN) is a name in Active Directory that a client uses to uniquely identify an instance of a service. An SPN combines a service name with a computer and user account to form a type of service ID.

How do I find my server SPN?

Viewing SPNs To view a list of the SPNs that a computer has registered with Active Directory from a command prompt, use the setspn –l hostname command, where hostname is the actual host name of the computer object that you want to query.

What is the use of SPN in SQL Server?

SPNs are used by the authentication protocol to determine the account in which a SQL Server instance runs. If the instance account is known, Kerberos authentication can be used to provide mutual authentication by the client and server.

What is SPN issue?

Service Principal Name troubleshooting is usually a problem when you are setting up the application to support Kerberos. Typically once the application has been up and running for a while there are not too many SPN problems once the application is working unless the Service Principal Names are changing. Summary.

How do I set up SPN?

1. On the Domain Controller machine, start Active Directory Users and Computers.
2. Select View > Advanced.
3. Under Computers, locate one of the Network Controller machine accounts, and then right-click and select Properties.
4. Select the Security tab and click Advanced.

Why is SPN needed?

A service principal name (SPN) is a unique identifier of a service instance. SPNs are used by Kerberos authentication to associate a service instance with a service logon account. This allows a client application to request that the service authenticate an account even if the client does not have the account name.

How manually register SPN in SQL Server?

To register an SPN manually we can use the Microsoft provided Setspn.exe utility. To be able to run this tool and register an SPN you need to be a domain admin or have the appropriate privileges (defined above).

How do I list SPN in SQL Server?

In Command Line enter the following command: setspn -L <Domain\SQL Service Account Name> and press enter. Next, you need to look for registered ServicePrincipalName to ensure that a valid SPN has been created for the SQL Server.

How do I add a SPN to my service account?

1. Assign the SPN to the Active Directory account using the setspn command.
2. Repeat this command for any number of SPN to the same account.
3. Generate a keytab file for the user account.

Article first time published on

What does Ntlm mean?

Windows New Technology LAN Manager (NTLM) is a suite of security protocols offered by Microsoft to authenticate users’ identity and protect the integrity and confidentiality of their activity.

What is azure SPN account?

An Azure SPN is a security identity used by user-created applications, services, and automation tools to access specific Azure resources. Think of it as a ‘user identity’ (username and password or certificate) with a specific role, and tightly controlled permissions.

How do I create an azure SPN?

1. Sign in to your Azure Account through the Azure portal.
2. Select Azure Active Directory.
3. Select App registrations.
4. Select New registration.
5. Name the application. Select a supported account type, which determines who can use the application.

Where are SPN records stored?

If the service runs under a user account, the SPNs are stored in the servicePrincipalName attribute of that account. If the service runs in the LocalSystem account, the SPNs are stored in the servicePrincipalName attribute of the account of the service’s host computer.

How does Kerberos connect to SQL Server?

1. Create Service Principal Names (SPNs) for the Instance of SQL Server.
2. Test connections are using Kerberos and not NTLM.
3. Configure Delegation permissions for. …
4. Set the Reporting Services Service Account with Impersonate Permissions.

What is Windows SSPI?

SSPI is a Windows technology for secure authentication with single sign-on. … SSPI authentication only works when both server and client are running Windows, or, on non-Windows platforms, when GSSAPI is available.

How do I remove duplicate SPN in Active Directory?

1. Click Start, point to All Programs, click Accessories, right-click Command Prompt, and then click Run as administrator.
2. If the User Account Control dialog box appears, confirm that the action it displays is what you want, and then click Continue.

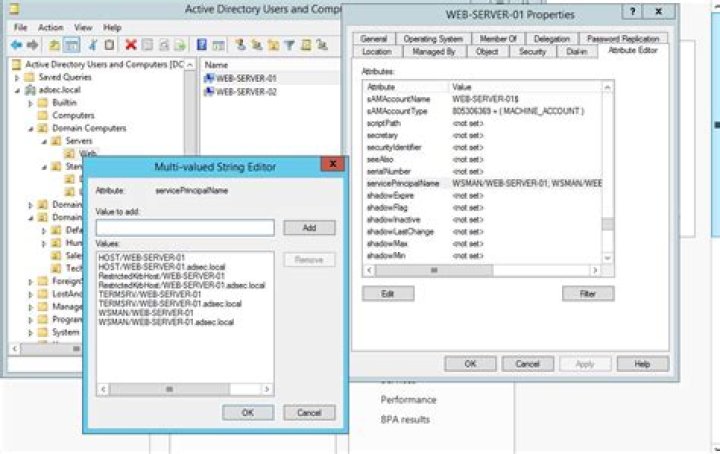

How do I modify SPN?

To change the SPN in ADSI Edit first browse to the user or computer object and open its properties. Find the Service Principal Name property in the list and choose edit. Here it is easy to add, edit, or delete the SPN’s for this Object.

What is Dsquery?

Dsquery is a command-line tool that is built into Windows Server 2008. It is available if you have the Active Directory Domain Services (AD DS) server role installed. To use dsquery, you must run the dsquery command from an elevated command prompt.

How do I fix target principal name is incorrect?

1. Deactivate the service “Key Distribution Center”
2. Restart Domain Controller.
3. Start a command-box as administrator and enter the following command: …
4. Restart Domain Controller.
5. Reset the service “Key Distribution Center” to automatic start and start.

What is Kerberos Key?

Kerberos is a computer network security protocol that authenticates service requests between two or more trusted hosts across an untrusted network, like the internet. It uses secret-key cryptography and a trusted third party for authenticating client-server applications and verifying users’ identities.

How do I create a service account in Active Directory?

1. Open Active Directory Users and Computers.
2. Create a new user. …
3. Create a strong password for the account and clear the checkbox so a password change is not required. …
4. Save the new password in Password Boss.

What is Ntlmssp used for?

NTLMSSP (NT LAN Manager (NTLM) Security Support Provider) is a binary messaging protocol used by the Microsoft Security Support Provider Interface (SSPI) to facilitate NTLM challenge-response authentication and to negotiate integrity and confidentiality options.

What is the difference between NTLMv1 and NTLMv2?

The difference lies in the challenge and in the way the challenge is encrypted: While NTLMv2 provides a variable-length challenge, the challenge used by NTLMv1 is always a sixteen byte random number. NTLMv1 uses a weak DES algorithm to encrypt the challenge with the user’s hash. … NTLMv2 uses HMAC-MD5 instead.

What is the main difference between NTLM and net NTLMv2?

NTLMv2 (A.K.A. Net-NTLMv2) This is the new and improved version of the NTLM protocol, which makes it a bit harder to crack. The concept is the same as NTLMv1, only different algorithm and responses sent to the server.

How do I find my Azure portal SPN?

1. Click Azure Active Directory and then click Enterprise applications.
2. Under Application Type, choose All Applications and then click Apply.
3. In the search filter box, type the name of the Azure resource that has managed identity enabled or choose it from the list presented.

What is SPN and UPN?

UPN: An entity performing client requests to some service. Entity may be human or machine. See here. SPN: An entity processing requests for a specific service, e.g., HTTP, LDAP, SSH, etc. Machine only.

What is an Azure subscription?

An Azure subscription is a logical container used to provision resources in Azure. It holds the details of all your resources like virtual machines (VMs), databases, and more. When you create an Azure resource like a VM, you identify the subscription it belongs to.

How do I get a tenant ID of a service principal?

1. Sign in to the Azure portal.
2. Select Azure Active Directory.
3. Select Properties.
4. Then, scroll down to the Tenant ID field. Your tenant ID will be in the box.

Who can create service principal in Azure?

If you are the admin of your Azure Active Directory, you can grant the user Application administrator role. Then the user will be able to create service principals.

How do I connect to Azure service principal?

1. Sign in to Azure AD PowerShell with an admin account.
2. Create a self signed certificate.
3. Load the certificate.
4. Create the Azure Active Directory Application.
5. Create the Service Principal and connect it to the Application.
6. Give the Service Principal Reader access to the current tenant (Get-AzureADDirectoryRole)
