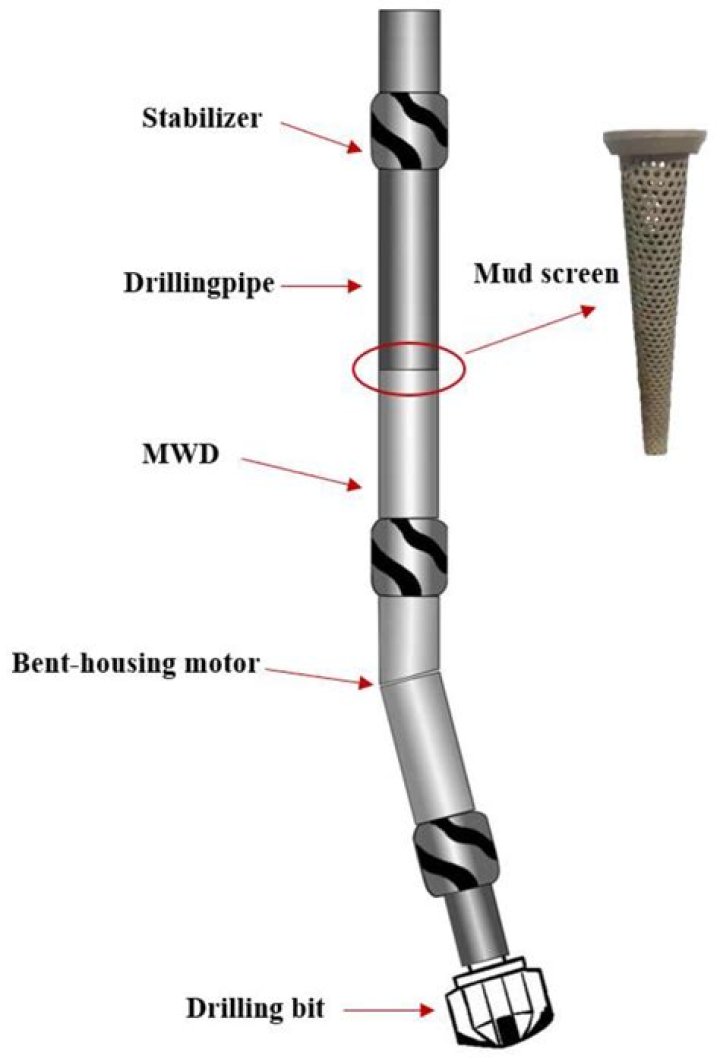

What is a MWD tool

MWD tools are generally capable of taking directional surveys in real time. The tool uses accelerometers and magnetometers to measure the inclination and azimuth of the wellbore at that location, and they then transmit that information to the surface.

What does a MWD hand do?

Measurement-While-Drilling (or MWD) is a type of well logging that incorporates the measurement tools into the drillstring and provides real-time information to help with steering the drill.

How does electromagnetic telemetry work?

Electromagnetic Telemetry Electromagnetic (EM) telemetry encodes the data from the downhole assembly onto a carrier signal that is transmitted by electromagnetic waves through the earth. This signal is received at the surface through ground stakes and then decoded.

What's the difference between MWD and LWD?

The key difference between LWD and measurement while drilling (MWD) is that whereas LWD data are recorded in memory and downloaded when the tools reach the surface, MWD data are transmitted up the pipe by means of a pressure wave (mud pulsing) at 3 bits/s and monitored in real time.

What is the full form of MWD?

MWDMetropolitan Water District Governmental » State & LocalMWDMeasurements While Drilling Academic & Science » GeologyMWDMinimum Working Distance Miscellaneous » Photography & ImagingMWDMunicipal Water District Governmental » Civic & MunicipalMWDMilitary War Dog Governmental » Military

What is directional drilling used for?

Directional drilling is the practice of accessing an underground oil or gas reserve by drilling in a non-vertical direction. Directional drilling is also called directional boring. Directional drilling increases the efficiency of oil and gas extraction, and can also lessen the environmental impact of drilling.

What is Geosteering in drilling?

1. n. [Drilling] The intentional directional control of a well based on the results of downhole geological logging measurements rather than three-dimensional targets in space, usually to keep a directional wellbore within a pay zone.

How does logging LWD drilling work?

Providing information on porosity, resistivity, acoustic waveform, hole direction, and weight on bit, LWD transmits logging measurements at regular intervals while drilling is taking place. Data is transmitted to the surface through pulses through the mud column (also known as mud pulse of mud telemetry) in real time.

What is logging while drilling data?

Logging while drilling (LWD) is a technique of conveying well logging tools into the well borehole downhole as part of the bottom hole assembly (BHA). … In these situations, the LWD measurement ensures that some measurement of the subsurface is captured in the event that wireline operations are not possible.

What is a quad combo log?

The quad-combo, which includes resistivity, bulk density/neutron porosity, sonic, and gamma ray measurements, provided the operator with information to evaluate the reservoir’s potential and lithology.

Article first time published on

What is MWD in oil field?

When drilling a well to access an oil reserve, workers use constantly updated information to ensure that the hole is drilled in the pre-determined, most efficient path and follow the designated plan. This process of guiding the wellbore is known as Measurement While Drilling (MWD) or Logging While Drilling (LWD).

What is mud pulse telemetry?

The most common method for transmitting the data in deep boreholes is the so called mud pulse telemetry. The mud pulse telemetry uses the flowing drilling mud inside the drill string as a transmitting channel, whereby the information is transmitted either in baseband or in passband as coded pressure pulses or waves.

What is drill casing?

Casing is a large diameter pipe that is assembled and inserted into a recently drilled section of a borehole. Similar to the bones of a spine protecting the spinal cord, casing is set inside the drilled borehole to protect and support the wellstream.

What is meant by WMD?

weapon/weapons of mass destruction: a weapon or weapons that can cause great destruction, loss of life, or injury: nuclear WMDs.

What does MWF stand for?

MWF is an acronym that stands for married white female. It is often used in personal ads, message boards, and chat rooms.

How much do MWD hands make?

How much does a MWD Field Hand make? The national average salary for a MWD Field Hand is $33,453 in United States.

Why might a directional well be necessary?

A directional drilling program might be necessary if the target horizon is not accessible from a location directly above it. … Moreover, directional drilling allows having multiple wells originating at the same surface location and deflecting into different directions (angles) as they go deeper.

What are ways a geologist and crew can determine where they are in a vertical section while drilling a well?

Using seismic surveys and surrounding well information, geologists are able to predict where and at what depth the reservoir layer will appear.

What is the difference between directional and horizontal drilling?

A more complex way of directional drilling utilizes a bend near the bit, as well as a downhole steerable mud motor. … Horizontal drilling is any wellbore that exceeds 80 degrees, and it can even include more than a 90-degree angle (drilling upward).

What is a deviated well?

Highly deviated wells may be described as those wells whose inclination exceeds 60° for most of their length. It is possible to extend directional drilling techniques to increase the inclination to 60–90°, although alterations may have to be made to drilling practices.

What is HDD in pipeline construction?

HDD is a safe and environmentally friendly way to construct pipelines with minimal surface disturbance not only in congested areas but also to preserve wetlands and other sensitive areas. …

What is Lwd in oil and gas?

Abbreviation for logging while drilling. The measurement of formation properties during the excavation of the hole, or shortly thereafter, through the use of tools integrated into the bottomhole assembly.

What is open hole logging?

Open-hole logging refers to logging operations that are performed on a well before the wellbore has been cased and cemented. In other words, the logging is done through the bare rock sides of the formation.

What is Lwd petroleum engineering?

Logging while drilling (LWD) refers to the addition of wireline-quality formation measurements to the directional data of a Measurement While Drilling (MWD) service. … Information is returned to the surface using the same methods as MWD telemetry options.

What is LWD field engineer?

Performs assignments requiring knowledge and application of basic engineering and measurement while drilling principles. … Maintains equipment inventory and supervises movement to and from well site. Check equipment and advises repair requirements.

Which drilling in lathe The drill is held in the?

Explanation: The tailstock of a lathe can be used for drilling, with the aid of a drill chuck attachment. The drill chuck has a morse taper shaft which can be push into the shaft of the tailstock, locking it in position.

What is the process of drilling?

Drilling is a cutting process that uses a drill bit to cut a hole of circular cross-section in solid materials. The drill bit is usually a rotary cutting tool, often multi-point. … Instead, the hole is usually made by hammering a drill bit into the hole with quickly repeated short movements.

What is triple combo?

The triple combo is the standard set of measurements used in formation evaluation and wireline logging: gamma-ray, porosity, and resistivity. Simply put, the triple combo tells us about rocks, pores, and fluids. … A gamma-ray log measures naturally occuring radioactive minerals.

What is dual gradient drilling?

Dual gradient drilling (DGD) technology involves creating two or more depths versus pressure gradients in the returns path. The concept itself dates to the 1960s, and during the 1990s the technique gained favor as an underbalanced drilling (UBD) technique on land drilling programs.

What is the approximate pressure pulse travel rate in the mud?

The pulses travel through the mud between the valve and the surface at the speed of sound (approximately 4710 feet per second in most drilling fluids). The pulses represent digitally coded information bits from instruments located near the valve.

What is tubing and casing?

Anything smaller is called tubing, anything larger is casing. … At the conclusion, the drill string is removed and the production casing is inserted into the wellbore and cemented into place. The well is then fractured and the tubing is installed inside the production casing.
