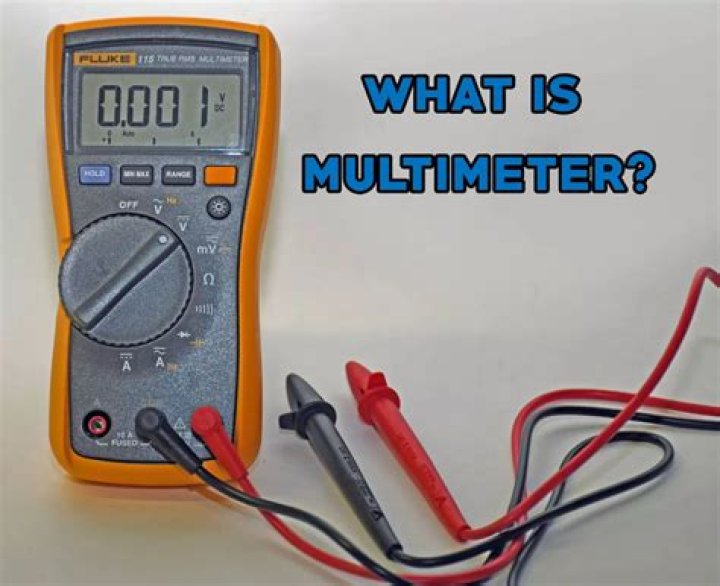

What is a multimeter probe

A multimeter is a measuring instrument that can measure multiple electrical properties. A typical multimeter can measure voltage, resistance, and current, in which case it is also known as a volt-ohm-milliammeter (VOM), as the unit is equipped with voltmeter, ammeter, and ohmmeter functionality.

How do you use a probe on a multimeter?

Plug your probes into the appropriate sockets. On most multimeters, the black probe should go into the socket labeled “COM,” and the red probe should go into the same socket you would use to measure voltage or resistance (not current), labeled with a V and/or an Ω.

Do multimeters come with probes?

Your multimeter comes with two insulated probes. You’ll need to connect them to the right ports (terminals) on the device depending on what you’d like to measure. … The black probe connects to your multimeter’s “COM” terminal. The red probe goes in the terminal labeled volts (V) and ohms (omega symbol).

What is a multimeter used for?

A digital multimeter is a test tool used to measure two or more electrical values—principally voltage (volts), current (amps) and resistance (ohms).

What size are multimeter probes?

Standard size body: 96 mm (3.8″) length. Tip: Brass, Nickel Plated. Tip fits into North American power sockets. Black and red colors standard; other colors available as special order.

Does a multimeter measure RMS or peak?

A true RMS multimeter will read RMS regardless of the waveform (form factor). They are normally marked as “true RMS” somewhere. Cheaper ones work on average, or take the peak-peak and assume the waveform is sinusoidal and guess the equivalent RMS value from there.

What should you not do with a multimeter?

Do not use your test leads if the protective insulation on the leads or probes is cracked or worn. …
The movement of current from one hand to the other during an electric shock is the most dangerous. …
Both DC and AC voltage can be very dangerous.

Do voltmeters need batteries?

If your multimeter is digital, it will require a small battery to operate. If it is analog, it does not need a battery to measure voltage. Some digital multimeters are autoranging.

What are the three main functions of the multimeter?

Measuring voltage. Voltage is the easiest and the most important electrical quantity that electricians need to measure when working with electric devices. …
Measuring resistance. …
Continuity test. …
Conclusion.

What are multimeter probes made of?

A typical voltmeter probe consists of a single wire test lead that has on one end a connector that fits the voltmeter and on the other end a rigid, tubular plastic section that comprises both a handle and probe body.

Article first time published on

How are the probes of a multimeter placed when measuring a DC voltage?

If measuring dc voltage, be certain to insert the red probe into the input jack marked V, not A. The display should show the dcV symbol. Placing test probes in A or mA inputs and then measuring voltage will create a short in the measurement circuit.

Do Fluke multimeters come with leads?

The set comes equipped with a pair (red, black) of flexible silicone insulated test leads with sharp needlepoint tips that are adjustable to the desired length from 0 to 3″ (0 to 76 mm).

Who invented multimeter?

In 1920, a British Post Office engineer, Donald Macadie, is credited with inventing the very first multimeter. The story goes that he was frustrated that he needed to carry a bunch of different tools when working on telecom lines, so he created one tool that could measure amperes, volts, and ohms.

What does CAT III 600v mean?

Within a category, a higher voltage rating denotes a higher transient withstand rating, e.g., a CAT III-1000 V meter has superior protection compared to a CAT III-600 V rated meter.

Is it safe to use a multimeter on an outlet?

To test an outlet with a multimeter, read the instructions that came with your device first and be careful not to touch the metal prongs. If you do, you could be electrocuted. The process of checking an outlet’s voltage is quick and easy, and you can also check the casing of an outlet to make sure it’s safe.

Why does my multimeter beep?

When testing for continuity, a multimeter beeps based on the resistance of the component being tested. That resistance is determined by the range setting of the multimeter. Examples: If the range is set to 400.0 Ω, a multimeter typically beeps if the component has a resistance of 40 Ω or less.

Does the voltmeter read RMS?

A voltmeter is used to measure DC voltages and AC voltages. The DC voltmeter is not measuring RMS voltage. … The DC component is the average voltage of the waveform. The average voltage is easier for a meter to measure than RMS, so it is fortunate that one usually only wants the DC average value, and not the RMS value.

Is 120 VAC RMS or peak?

The 120V is the RMS voltage. And the peak voltage for this is actually 170V.

Can a DC voltmeter measure AC?

DC Voltmeter measures the peak value of DC voltage. AC Voltmeter measures the rms value of AC voltage. The DC voltmeter consists of attenuator, followed by a multistage amplifier and a PMMC meter. The AC voltmeter consists of attenuator, followed by a rectifier, a multistage amplifier and a PMMC meter.

What are the two types of multimeter?

Multimeters are divided into two types depending on the way the indication is displayed: analog and digital.

What will happen if you expose multimeter into water?

You could technically submerge your device in pure water and it won’t destroy it. Pure water is a very poor conductor, so it won’t affect your electronic devices very much if at all.

What are the different setting on a multimeter?

You have to set the multimeter to a range that it can measure. For example, 2V measures voltages up to 2 volts, and 20V measures voltages up to 20 volts. So if you’ve measuring a 12V battery, use the 20V setting.

What is the best multimeter for automotive use?

RatingProductBest OverallInnova 3340 Automotive Digital MultimeterCHECK PRICEBest ValueINNOVA 3320 Auto-Ranging Digital MultimeterCHECK PRICEPremium ChoiceFluke FLUKE-88-5 88V Automotive MultimeterCHECK PRICEFluke 117 True RMS MultimeterCHECK PRICE

How do you check a car with a multimeter?

Set the voltmeter to read ohms (resistance) and probe the battery’s negative stud and ground connection on the accessory (the ground terminal on an amp, for example). If you have a reading less than five ohms, the ground is okay.

What is the difference between the test probe red and test probe black on the analog multimeter?

The black one is normally taken as the negative one. This one is connected to the negative or “common” socket on the meter. The red one is connected to the positive socket. It is important to ensure that the negative lead is in the negative or common connection.

What does a negative reading on a voltmeter mean?

Negative just means current is flowing the other way. It’s not magically illegal or anything, like a negative weight for a baby. If you hook an ammeter to a battery, you might read positive current while it’s charging and negative current when it’s powering a load.

Can you use a voltage tester on wires?

Unlike the non-contact voltage tester, this tool requires you to touch the circuit wires, screw terminals, or outlet slots with the wire probes. … To use a neon voltage tester, simply touch one tester probe to a hot wire, screw terminal, or outlet slot, and touch the other probe to a neutral or ground contact.

What is normal probe?

This product is used to inspect thickness and to measure flaws on bars, plates, castings, forgings and extrusions. Normal Probes is made using high quality raw material at vendor’s end.

What is a high impedance probe?

High-impedance (Hi-Z) passive probes are the most commonly used oscilloscope probes and offer attenuation factors of 10:1 (X10) and/or 100:1 (X100), a typical maximum input voltage of 600 V, and rated bandwidths of up to about 500 MHz. But be wary at bandwidths above 50 MHz.

What should a 12 volt battery read on a multimeter?

A fully charged battery will typically display a voltmeter reading of about 12.6 to 12.8 volts. If your voltmeter is showing a voltage anywhere between 12.4 and 12.8, that means your battery is in good shape. Any voltage above 12.9 volts is a good indicator that your battery has excessive voltage.

What are the signs of a bad battery?

Dim headlights. If your car battery is failing, it’s not going to be able to fully power your vehicle’s electrical components – including your headlights. …
Clicking sound when you turn the key. …
Slow crank. …
Needing to press on the gas pedal to start. …
Backfiring.
