What is a marking gauge made of

A marking gauge is used to mark a line parallel to a straight edge. The stem and stock are made from beech and the thumbscrew from clear yellow plastic. The better quality gauges have brass inserts at the front of the stock.

What are all the parts of a marking gauge?

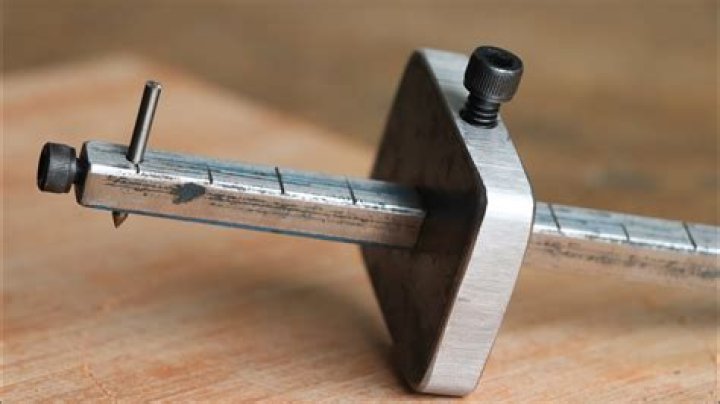

The gauge consists of a beam, a headstock, and a scribing or marking implement, typically a pin, knife, pen or wheel. The headstock slides along the beam, and is locked in place by various means: a locking screw, cam lever, or a wedge. The marking implement is fixed to one end of the beam.

What does a marking gauge look like?

A marking gauge is the most common type of gauge used for marking. It uses a small pin, sometimes referred to as a spur, to mark the wood when the tool is dragged across it. In its early form, the marking gauge was simply two pieces of wood attached together with a pin through one end for marking.

What do marking gauges do?

A marking gauge is used in woodworking to mark out lines for cutting or other purposes. The main purpose is to scribe a line parallel to a reference edge.

What materials are used for the manufacture of the various parts of the marking gauge?

A marking gauge is used to mark a line parallel to a straight edge. The stem and stock are made from beech and the thumbscrew usually from plastic or brass.

What is the difference between marking gauge and marking knife?

Answer: Answer: a cutting gauge is a marking gauge with a knife instead of a pin. Basically, the theory behind this distinction is that cutting across grain with a knife is better than using a pin. … A panel gauge’s major use is in scribing boards to the correct width.

How many Spurs does a marking gauge have?

Like the simpler marking gauge, a mortise gauge has a locking thumb screw slide for adjusting the distance of the scribe from the edge of the wood. It has two protruding pins, often called “spurs”, which are designed to scribe parallel lines marking both sides of a mortise at the same time.

What is the purpose of the brass inserts on the stock of the marking gauge?

The better quality gauges have brass inserts at the front of the stock. These help reduce the wear on the stock as it is pushed against the surface of the wood – to be marked. The marking gauge is an extremely important tool for marking parallel lines and preparing for cutting joints.

Do you need a marking gauge?

Pencils have always been vital to woodworkers, but so are marking gauges for precision results. Marking gauges are indispensable for joinery work such as cutting dovetails and mortise-and-tenon joints.

Is a marking gauge wheel supposed to turn?

The cutter is not intended to turn, it’s a marking gauge not a cutting wheel. You rotate the cutter every now and again to get a fresh sharp cutting edge. … The brass wheel is used to set depth of intended cut. The small wheel on the end is like a knife, in as much as it marks the board to give you a stop here mark.

Article first time published on

What is the difference between a marking gauge and a cutting gauge?

A cutting gauge is a marking gauge with a knife instead of a pin. Basically, the theory behind this distinction is that cutting across grain with a knife is better than using a pin. … A panel gauge is basically a long marking gauge with a beam that can go from a foot to several feet long, depending on the application.

What are the safety rules for a marking gauge?

To attain an accurate result when marking-out, carefully handle and align your ruler, try square, sliding bevel or marking gauge, etc. Take the time to “measure twice – cut once”. Always try to keep your marking-out tools clean and protected – away from the regular hand tools and power tools on your work bench.

What are marking tools?

Marking Tools are meant to transfer notations or designs for use while quilting or sewing. There are many reasons quilters and sewists use marking tools; marking where two pieces should meet, marking a quilt design on a quilt top, tracing a pattern onto fabric, just to name just a few.

What is a cutting gauge?

Cutting Gauges are like marking gauges, except they use a knife instead of a pin. They’re used for scoring across the grain and can also be used for cutting strips of wood veneer and small rebates. The cutter is secured in place with a brass wedge, which also enables removal for sharpening the cutter.

What are the marking tools in sewing?

• Tailors Chalk.
• Chalk Pencils.
• Disappearing Pens.
• Washable Markers.
• Carbon Paper and Tracing Wheel.
• Regular Pens.
• Soap.

What type of marking tool is used for wooden fabric?

Tailor’s Chalk – Tailor’s chalk usually comes in the shape of a flat triangle or rectangle. Tailor’s chalk will rub right off the fabric when you’re finished with the markings, so it generally carries less risk than using a pencil or marker.

Who invented marking gauge?

No evidence suggests that the Egyptians, the Greeks or the Romans used this tool. Our first known record of its use comes from an engraving c. 1600 by the engraver, Hieronymus Wierix: Holy Family.

What is the best mortise gauge?

Veritas Dual Marking Gauge The Veritas Dual Marking Gauge is no different, as it’s one of the best marking gauges you can buy. It’s a wheel gauge style marking gauge with two stems and cutters for marking mortise and tenon joints. The hardened steel cutters cut wood rather than scratch it, leading to ultra-fine lines.

What is combination gauge?

The combination gauge is used to mark parallel lines lightly on the surface of wood. The twin pin side can be used to mark out the width and position for a mortise and tenon joint. The single pin side is used to mark the depth for recesses or the width or thickness of a board when sawing or planing it to size.

What does a try square look like?

A try square is made of two key parts, the blade (also known as a beam or tongue) and the stock, which are fixed together at 90° to form an ‘L’ shape. … Typically the blade and the stock will be rectangular in profile, though on some wooden squares the ends of the blade and the stock might be cut to a decorative shape.

What is a wheel marking gauge?

A wheel marking gauge, which employs a metal rod and ring, is a modern design. They have a circular cutting edge that gives them a cutting gauge-like finish. Wheel marking gauges are more costly, but they cut exceptionally clear lines since the smooth metal slides across almost any surface with ease.
