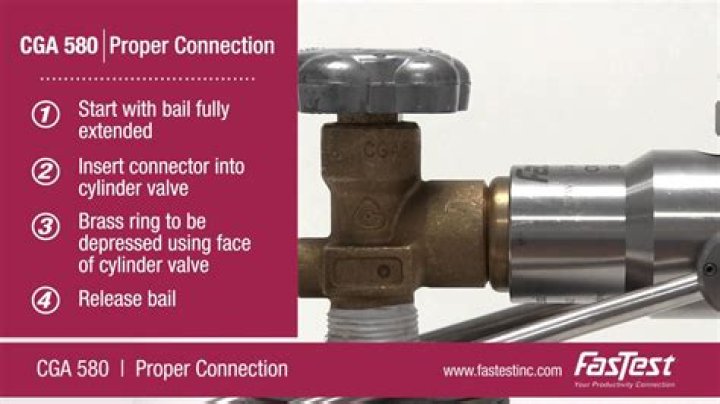

What does CGA 580 mean

Examples of CGA fittings would be CGA-580 for Non-flamable, Non-oxidizing gasses such as Nitrogen, Argon, or Helium. … CGA-590 is used for compressed air and CGA-326 is used for Nitrous Oxide.

What does CGA 580 stand for?

CGA stands for Compressed Gas Association. 1) CGA-350 is used for hydrogen and argon/methane. 2) CGA-580 is for helium, nitrogen or argon.

What does CGA fitting stand for?

The Compressed Gas Association (CGA) has selected and standardized the valve outlet to be used on each gas cylinder.

What size is CGA 580?

Western CGA-580 Argon/Helium/Nitrogen Hand Tight Regulator Nut has a thread size of 0.960″ – 14 NGO with RH Female connection and is made of brass and has a pressure of 3000 psig.

What is a CGA 540 fitting?

CGA-540 is the standard fitting for the attachment of a compressed gas cylinder to the required regulator or transfer line in the United States. Regulator Features Include: Constant lock-up, flowing pressure range and large flow reserve throughout the pressure charge range of the cylinder.

What does CGA 320 mean?

CGA 320. Carbon Dioxide, Methyl Fluoride. CGA 326. Nitrous Oxide. CGA 330.

Why is it unsafe to use oil on a regulator?

Never use grease or oil to lubricate regulators or cylinder valves because they can cause an explosion. The cylinder should be placed so that the valve handle at the top is easily accessible.

What does CGA 520 mean?

The Harris® 301 B Tank Acetylene Regulator (CGA 520) is made in the USA and comes with a 7 year factory warranty. It is a single-stage, solid brass regulator designed for light and medium duty welding, cutting and brazing applications.

What CGA 032?

CGA 032 (Inert gas B size Female – Right Hand Thread 5/8-18) 1/4″ NPT – Male Pipe Thread. Material – Brass. Inert arc hose adapter.

What type of CGA fitting does oxygen have?

GasCGA FittingNitrous Oxide326326Octofluorocyclobutane660Oxygen540540, 714Perfluoropropane660, 716

Article first time published on

What is CGA in welding?

Tanks and regulators that fall under this system have a CGA number. CGA stands for Compressed Gas Association which was formed shortly after a man by the name Robert King sent out a letter, in 1913, requesting that the manufactures of compressed gasses meet in New York to set a standard.

What are CGA numbers?

CGA valve outlet connections are identified by a 3-digit number relating to the rated or maximum cylinder pressure at which the connection is designated to be used, the gas type, and a designation of the valve outlet thread when applicable. Each connection has its own dimensions including manufacturing tolerances.

What does CGA stand for in welding?

The first thing to consider when selecting a cylinder fitting is the Compressed Gas Association (CGA) Number Designation. In order to avoid the accidental mixing of potentially reactive gases, the CGA has standardized gas cylinder fittings.

What size is CGA 540?

Size28MM,23MMUsage/ApplicationIndustrialNut Typenut with nippleShapeHexagonalMaterialBrass

What CGA 510?

CGA-510 Regulator Nipples for Acetylene / Propane / Natural Gas.

What CGA 680?

Slide a high-pressure hose nipple for compressed gas into one of these nuts to connect a pipe to the inlet of a pressure regulator. They are also known as CGA (Compressed Gas Association) nuts and inlet nuts.

Will oxygen tank explode if dropped?

Explosions are a potential risk with portable oxygen tanks if they are mishandled or dropped, posing a risk of serious and potentially life-threatening injury. Upon a certain degree of impact, the oxygen cylinder can ignite, causing an internal flash fire and causing the aluminum tank to burst.

What should never be done to gas cylinders?

Store compressed gas cylinders in dry, cool areas, out of direct sunlight and away from steam pipes, boilers or other heat sources. Follow the gas supplier’s recommendations for storage and use temperatures. To prevent excessive pressure buildup, never expose cylinders to temperatures above 52°C (125°F).

What is the purpose of leaving 175 kPa in the tank instead of emptying a cylinder completely?

A cylinder should never be emptied to a pressure lower than 172 kPa (25 psi/in2) (the residual contents may become contaminated if the valve is left open). When work involving a compressed gas is completed, the cylinder must be turned off, and if possible, the lines bled.

What CGA 590?

CGA-590 is used for compressed air and CGA-326 is used for Nitrous Oxide. There are approximately a dozen commonly used CGA-fittings, with others used for special purposes.

What CGA 347?

Product Description. CGA-347-N is designated for AIR at pressures up to 5500 PSI. This valve has a standard 3/4” NGT Threads which are most commonly used with Norris Cylinders and any other brands that uses standard 3/4” connections. Typical storage pressures are 3600, 4500, and 5000 PSI.

What CGA 346?

Product Description. CGA-346 is designated for AIR at pressures up to 3000 PSI. This valve has 3/4” NGT Threads which is the most commonly used with storage cylinders. Typical storage pressures are 2216, 2265.

What CGA 300?

The Harris® 301 Acetylene Regulator (CGA 300) is made in the USA and comes with a 7 year factory warranty. It is a single-stage, solid brass regulator designed for light and medium duty welding, cutting and brazing applications.

What type of threads do Oxygen cylinders have?

Medical cylinders have 1/2”-14 N.G.T. internal thread connections. Industrial cylinders have 3/4”-14 N.G.T. internal thread connections.

What is a nitrogen regulator?

Nitrogen Regulator – Dual Gauge. A nitrogren regulator used for Nitrogen and Argon – it will fit both tanks. A nitrogen regulator has a higher high-pressure gauge than a CO2 regulator. (The starting pressure in a Nitrogen/Argon tank will be about 2200 p.s.i. as opposed to 800 p.s.i for a CO2 tank.)

What is AB tank?

The Ab Tank is a gentle supportive top that we recommend as the base layer underneath the Ab Wrap (sold separately). It is designed to fit underneath the bust to allow for easy breastfeeding / feeding from the body. We’ve made it extra long so that it fits over the newly postpartum belly and doesn’t ride up.

How much does an acetylene tank weigh?

Acetylene CylindersSpecTappingShip WeightDOT-83/4-14 NGT26.5 lb

Do CGA fittings need Teflon tape?

Gas handling equipment that connects to your gas cylinder must have a compatible CGA fitting to mate with the gas cylinder valve outlet. … Moreover, never use any pipe dope or PTFE tape with CGA fittings when mating to the cylinder valve. In general, these connections are designed for metal-to-metal sealing.

What is the CGA for hydrogen?

GasCGA No.Hydrogen Fluoride660Hydrogen Selenide350, 660Hydrogen Sulfide330Iso-Butane510

What is the hottest cutting torch?

The hottest most-versatile gas, acetylene, is very easy to use for all purposes. Pre-heat time for cutting and gouging is relatively short because the flame temperature is between 5,600 and 5,800 F.

What is the advantage of using a combination welding and cutting torch?

What is a combination welding-cutting torch? A torch that can have a cutting head, welding tip, or a heating tip. State one advantage of owning a combination welding-cutting torch as opposed to just having a cutting torch. You can use it for multiple tasks.
