Is a vapor canister and a charcoal canister the same thing

Yes, the Charcoal and Evap. canister are the same part.

What is another name for charcoal canister?

The charcoal canister (aka: EVAP canister) is an essential part of the Evaporative Emission Control System (often shortened to “EVAP”).

What is fuel Vapour canister?

Fuel vapor canisters take fuels emitting from an engine’s carburetor. The fuel vapor canister, also known as a charcoal canister because it is filled with charcoal, is part of a vehicle’s pollution control system and is used to capture fuel vapors emanating from both the fuel tank and the carburetor.

Is a charcoal canister the same as a carbon canister?

In some cases, the vapor canister may be referred to as a charcoal canister or an EVAP canister. There’s no difference between these three components—they’re all the same thing.

What are the symptoms of a bad charcoal canister?

• High Emissions.
• Fuel Odor.
• Pinging Sounds.
• Weak Performance.
• Check Engine Light.

Where is the vapor canister located?

Location: The charcoal canister is usually located in one of the far corners of the engine compartment. It is normally a black container filled with charcoal pellets that absorb fuel vapors. Not all charcoal canisters however are located in the engine compartment.

Where is the vapor canister?

On most domestic and foreign vehicles sold in the US, the EVAP emissions canister is located next to the fuel cell. It is shaped in a rectangular or spherical design and has three vapor lines attached to it. One line attaches to the fuel cell, one to the EVAP purge solenoid and one to the EVAP vent solenoid.

Can you clean out a charcoal canister?

Never wash the inside of the charcoal canister with any type of liquids. Only use 40-50 p.s.i of compressed air to clean the charcoal canister.

What is the purpose of a charcoal canister?

Part of the car’s emissions controls, this charcoal-filled canister’s job is to absorb fuel vapor that would otherwise vent out to the atmosphere, causing pollution. Vapors trapped by the charcoal are released back into the engine through the purge valve and then burned.

Can a bad charcoal canister cause stalling?

If the canister purge solenoid starts to go out, the Check Engine light will come on and your car will not pass an emissions test. In addition, the buildup of fumes inside of the canister can cause your vehicle to stall or misfire. The canister purge solenoid works by absorbing the fuel vapors with activated charcoal.

Article first time published on

What happens when a vapor canister goes bad?

A damaged EVAP canister is bound to cause poor engine performance. Your engine will begin to have a less effective operation, producing a low power for high acceleration. This might cause your vehicle to have a sluggish movement, even as you apply pressure on your gas pedal.

How much does it cost to replace an EVAP canister?

Vapor Canister Purge Valve Replacement Cost Expect to pay anywhere from $80 to $200 in total. The part will typically cost anywhere from $30 to $120, while the labor costs will be right around $50 to $80. Then, of course, there are fees and taxes added on to this price too.

How long do charcoal canisters last?

Most of them will last the life of the car and never need replacing. If you’re having issues with your emissions system and error codes related to the canister’s purge solenoid, you may need to investigate. Chances are, the canister will be fine and you just need to change the solenoid.

Where is the vapor canister vent solenoid located?

In most cars, the EVAP vent valve is located underneath the vehicle, close to or at the charcoal canister near the fuel tank, see the photo.

Should I replace my charcoal canister?

There are at least a few reasons you might need to replace the canister. Symptoms you may notice from a faulty charcoal canister might include check engine light (CEL), difficulty refueling, poor engine performance, excessive fuel odor, or the reduced fuel economy.

Can vapor canister be cleaned?

You can’t clean the canister, but you can clean or replace the air filter. All good advice above, but no one ever seems to mention checking and cleaning/replacing the canister air filter. If the air filter is dirty, clogged, restricted, etc., then the evap system cannot function as designed.

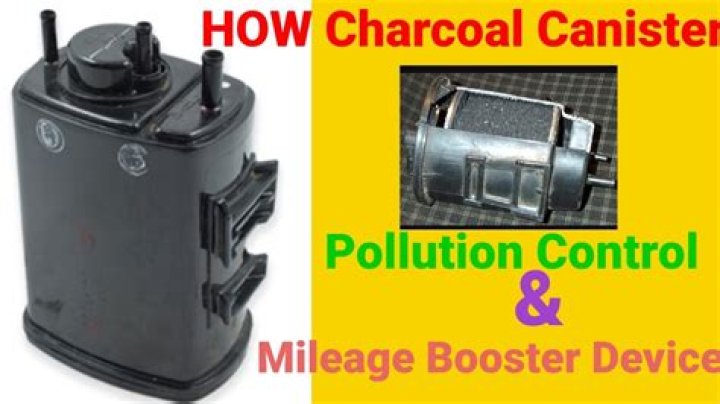

What is inside a charcoal canister?

The interior of the canister is filled with charcoal or carbon pellets. The input of the canister connects to the gas tank’s vent port, while the output connects to the purge valve in the side of the vehicle’s intake manifold.

What are the symptoms of a bad vapor canister purge valve?

• Check Engine Light.
• Rough Idle.
• Trouble Starting Car.
• Poor Engine Performance.
• Emissions Test Failure.

Do diesels have charcoal canisters?

Why is there no canister in a diesel engine? – Quora. Charcoal canister is used to reduce the evaporative emission in vehicle. During the soak time of the vehicle the fuel in fuel tank and in carburettor bowl is evaporated. This evaporated fuel is mixed to atmosphere and causes​ pollution.

Can you drive without EVAP canister?

It won’t cause any damage to anything because it is used for fuel vapors in the tank. Nothing to do with actual smog of the vehicle.

What causes an EVAP leak?

The most common causes for EVAP leaks include bad seals and O-rings, a failing purge valve, a damaged hose or vent, or a defective leak detection pump. As you might have guessed, there’s no real way to prevent one of those components from failing unless you’d like to regularly replace components of your fuel system.
