How wide are urinal stalls

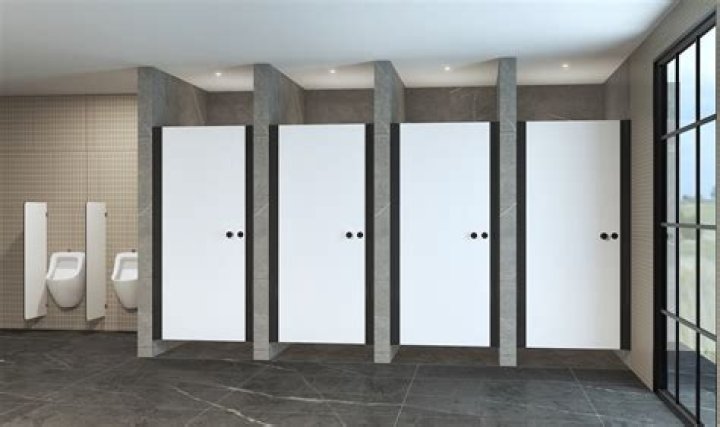

For starters, urinal partitions are usually 24 inches wide and between 42 and 48 inches tall. This standard size provides privacy and a nice, clean look for any restroom, but we also customize urinal partitions to fit any restroom design.

How wide do bathroom stalls have to be?

A standard toilet stall will be 36” wide by 60” deep with a 24” wide door. In compliance with the Americans with Disabilities Act (ADA), bathrooms usually require one larger stall designed to accommodate wheelchairs. These ADA stalls are 60” wide by 60” deep with a 36” wide door and found at the end of the row.

How thick are bathroom stall walls?

Bathroom stall walls vary in thickness from 1/2 to 1 inch, depending on what material they’re made of. The density of the restroom wall matters to your customers, as a solid and sturdy partition will make them feel safe and help form a quality impression of your business.

How big is a ADA bathroom stall?

The width must be at least 60 inches, as measured from the right angle of the sidewall or partition. A toilet compartment that meets these requirements makes it possible for a person in a wheelchair to maneuver in the stall comfortably and safely.

How tall is the average bathroom stall?

A standard stall panel can be 55-inches tall and placed so that the bottom of the panel is 14-inches above the floor. Since panels can be of varying heights, including custom heights, it’s good to become familiar with the types of partitions you are considering.

How much space is needed for a urinal?

Urinal Design Requirements Between urinals: There should be about 12 inches of space between urinals to allow room for the partition and space for users to stand. Front lip: The front lip of a wall-mounted urinal should be a minimum of 13.5 inches away from the wall and 17 inches from the floor.

What is the smallest size a commercial bathroom can be?

Minimum stall measurements are usually at least 48 inches by 56 inches, but you might have to add additional floor space, depending upon the configuration of the toilet and location of the stall door.

How thick is a bathroom stall door?

Standard Stall Dimensions A bathroom stall door is usually 24 inches wide and 58 inches high, and the stall size is typically 36 inches wide and 60 inches deep. That said, depth can vary from 48 to 78 inches.

Why do bathroom stalls have gaps?

The gap provides visibility in case a person inside is in some kind of distress. It also helps first responders, who could pull the occupant out without having to break down the door. … Small doors also make cleaning floors in and around the stalls easier.

How much room do you need around a toilet?

The size for a separate toilet compartment should be at least 36×66 inches with a swing-out or pocket door. Code Requirement: The minimum size for a separate toilet compartment is 30×60 inches.

Article first time published on

How wide is a commercial toilet stall?

The layout should include where your tiled walls are, as well as, how wide and deep the compartments you want them to be. Standard toilet stalls are 36” wide by 60” depth. Partition stalls can have a minimum depth of 48” in most cases or up to 78” depth if needed.

How wide is a public bathroom?

Standard bathroom stalls generally measure between 36″ wide and 60″ long. To be ADA-compliant, a bathroom should have at least one accessible stall, which is large enough to comfortably allow a person in a wheelchair to use — a minimum of 60″ wide.

How tall are bathroom stalls in feet?

For instance, with any type of partition, all have a standard door and panel height of 58″ (4.8 feet) and sit 12″ off the floor. However, with new preferences for more privacy, we now have 64″ (5.3 feet) high doors and panels or 72″ (6 feet) doors with 76″ (6.3 feet) panels now available.

Do ADA bathroom doors swing in or out?

Current ADA Guidelines Current guidelines for bathrooms, published in 2010, allow the bathroom door to swing inward “as long as there is a clear floor space” beyond the door swing, when open.

Does a urinal need to be ADA?

1 in later editions). The ADA Standards require that unisex toilet rooms, where provided, have privacy latches and contain at most one lavatory, one water closet, and one urinal (or a second water closet) (§213.2. 1).

Does a urinal need to be ADA compliant?

ADA compliant urinals must be placed in ADA compliant bathrooms. This includes doors that do not open into the necessary floor space required for access to fixtures. The access routes and turning space required for fixtures within the bathroom can overlap.

What makes a urinal ADA compliant?

Stalls. ADA compliant urinals should be stall-type or wall-hung at a maximum of 17 inches from the floor. Water closets must be 17 to 19 inches from the floor (measured from the floor to the top of the toilet seat). Like faucets, flush valves shouldn’t require tight grasping, pinching, or twisting of the wrist.

Why do American toilets block so easily?

Why do American Toilets Block so Easily? … American toilets are all about suction, they pull the waste down when the toilet is flushed, and then out into the “trap way”. The amount of suction required for this process means that the “trap way” needs to be narrow, and it’s usually around five centimetres wide.

Why don t public bathroom doors go to the floor?

Several reasons: Floor to ceiling stall doors wouldn’t allow potential users to easily determine which stalls were available. Floor to ceiling stall door walls would likely require additional ventilation to be added to ease the flow of air through the stalls and throughout the lavatory.

Which stall is the cleanest?

According to studies, the middle stalls are to be avoided if possible. Apparently, people tend to choose the middle one because of the “centrality preference.” On the other hand, the first stall, which is the least used, is likely to be the cleanest.

What is a restroom stall?

A bathroom stall is an enclosed private space with a toilet or urinal available for use by the general public. Stalls vary in additional accommodations beyond toilet paper that range from a coat hook, trash bin, and toilet seat covers dispensers.

What are dimensions of a toilet?

Overall, a standard toilet will be between 27 and 30 inches deep, with a back height of 21 to 31 inches and a width of about 20 inches. An ADA-compliant version needs to have a seat height of 17 to 19 inches. This is one reason why partitions around ADA-compliant bathrooms are different.

Can you replace a 10 inch rough in toilet with a 12 inch rough in toilet?

The rough-in for your bathroom plumbing should match the rough-in for the toilet. Even if a toilet is designed for a 10-inch rough-in, you can still install it in a space with a 12-inch rough-in.

How much space should be between toilet and vanity?

A toilet should have some elbow room between it and another fixture or vanity. The NKBA’s recommendation is at least 18″. Codes allow a minimum distance of 15″. If you’re placing your toilet in a compartment, it should be 36″ x 66″, although codes will allow 30″ x 60″.

How narrow can a toilet stall be?

Figure 30(a) Standard Stall. The minimum width of the stall is 60 inches (1525 mm). The centerline of the water closet is 18 inches (455 mm) from the side wall. The location of the door is in front of the clear space and diagonal to the water closet, with a maximum stile width of 4 inches (100 mm).

What's the normal size for a bathroom?

What is the average size bathroom? An average sized bathroom is anywhere between 36-40 square feet for an apartment or small home. This size is the general size as it encompasses both ¾ baths as well as full baths, giving you just about enough room for a shower, a bath, a sink and a toilet.

How wide is an ADA bathroom door?

ADA Bathroom Door Requirements According to the 2010 law, ADA bathroom doors need to be at least 32 inches (81 cm) wide, while the swing of the door can interfere with the clear maneuvering area about 12 inches (30 cm) max.

How wide are ADA doors?

Most entrances to stores and businesses use 36 inch wide doors that are wide enough to be accessible. However, some older doors are less than 36 inches wide and may not provide enough width (32 inch clear width when fully opened).

What is the minimum width needed for a wheelchair to fit under a vanity?

Handicap Bathroom Dimensions In order for a typical wheelchair to make a 180-degree turn, a space with a diameter of 60-inches is needed. The space may include unobstructed floor beneath bathroom fixtures, such as a wall-mounted sink or toilet, provided there is enough toe and knee clearance.
