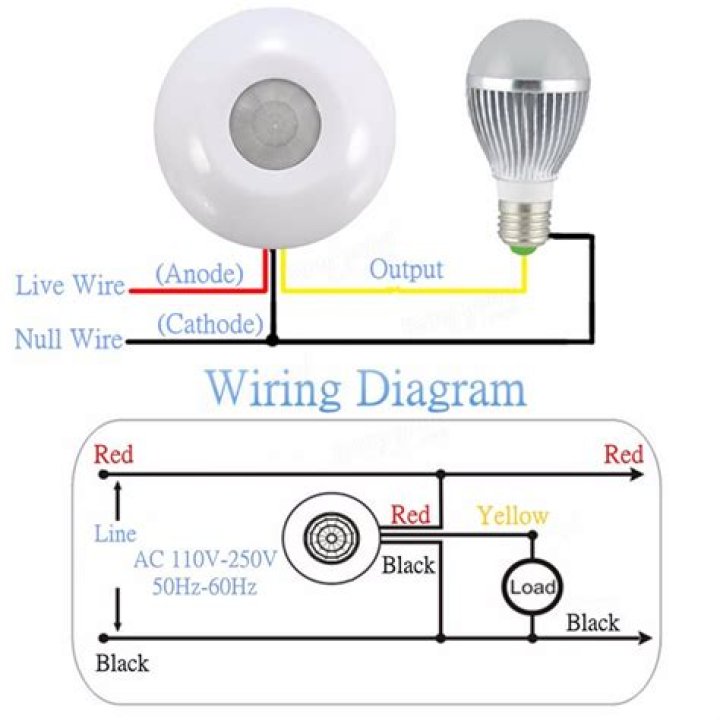

How do you wire an occupancy sensor

Occupancy sensor switch wires each have two black wires, (or one black and one red) and ground (green). One of the black line wires connects to line voltage from the panel, the other black (or red) load wire connects to the light(s). Each black wire can be a line or a load. Red is always the load wire.

How do you wire a occupancy sensor switch?

Occupancy sensor switch wires each have two black wires, (or one black and one red) and ground (green). One of the black line wires connects to line voltage from the panel, the other black (or red) load wire connects to the light(s). Each black wire can be a line or a load. Red is always the load wire.

What is the blue wire on a motion sensor light?

Use the blue or yellow wire to connect to load (light fan motor etc). 1) Occupancy-green-wire connects to bare ground wire. 2) Single-pole switch being replaced has 2 wires. Take Single-pole switch wires and connect them to Occupancy-black-wire and Occupancy-red-wire.

How do you wire a motion sensor to an existing light?

1. Pick an outdoor motion sensor kit online. First, make sure the existing light has an opening to screw into.
2. Turn the power off to the light, and remove the cover. …
3. Remove the insert. …
4. Run the wires into the light. …
5. Connect the wires. …
6. Adjust the sensitivity.

What is difference between motion sensor and occupancy sensor?

The Occupancy sensor detects presence of people or animals in the target monitored area. The motion sensor responds to moving objects only. The difference between them is occupancy sensor produce signals whenever an object is stationary or not while motion sensor is sensitive to only moving objects.

Can I put a motion sensor on a 3-way switch?

When using in a 3-way application use one sensor and one standard 3-way switch. Cannot be used with another sensor, or in a 4-way application. WARNINGS AND CAUTIONS: If you are not sure about any part of these instructions, consult an electrician.

How do you hook up a light sensor?

Connect the black, white, and red wires from the light sensor to the wall wires. Twist the hot black wires together and screw a plastic wire nut onto the ends. Repeat this for the neutral white wires and red load wires. The live and neutral wires are always black and white, respectively.

What is the red wire on a motion sensor light?

The black wire connects to the black (hot) wire coming into the box. The red wire is switched via the motion sensor (and light sensor) and connects to the black wire that goes to the light fixture.

Can I connect red and black wires together?

Red Electrical Wires These wires are typically used for switch wiring as well as the interconnection between smoke detectors hard-wired into the power system. You can link two red wires together, or you can link a red wire to a black wire. Since red wires conduct current, they are considered hot.

How does occupancy sensor works?

Occupancy sensors that rely on ultrasonic technology send high frequency sound waves (that humans can’t hear) into an area and measure reflection patterns. When the pattern changes, the sensor considers the space occupied.

Article first time published on

Are occupancy sensors required by code?

Codes require the occupancy sensor turn the lights off within 30 minutes of the occupant leaving the space, ensuring energy savings. Control manufacturers recommend a 15- to 20-minute time delay as a good compromise between energy savings and lamp life.

Are occupancy sensors required?

Occupancy sensors are required in a broad range of spaces, and separate control is required for daylight areas, including, in some cases, secondary areas. The standards impose commissioning requirements including functional testing and documentation.

How do you install a motion sensor in a bathroom?

1. Shut off the Electricity. Switch Off The Power In Your House. …
2. Wire the New Fixture and Mount It. Wire the Motion Sensor With the Light. …
3. Turn On the Power And Switch. Turn on The Power in The Bathroom. …
4. Set the Controls. Set the Controls on Your Motion Sensor.

How does a ceiling mounted occupancy sensor work?

Occupancy and vacancy sensors are devices that detect when a space is unoccupied and accordingly automatically turn OFF (or dim) the lights, thereby saving energy. The device may also turn the lights ON automatically upon detecting the presence of people, providing convenience and a potential security aid.

Can I daisy chain security lights?

A daisy chain connects multiple lights to the same circuit so you can control them from one place. To make a daisy chain, you’ll need a screwdriver, a light bulb for each fixture, and enough electrical wire to stretch between each of them.

Can you connect two motion sensors to light?

A light can be controlled with more than one motion sensor.

Which wire is hot on 3-way switch?

Black wire: This is a hot wire that carries electricity from the power source to the first switch in a typical 3-way setup. It’s also called the “common wire” or the “line wire.” Unless the breaker is off, this black wire is always hot.

Where does the neutral wire go on a 3-way switch?

The other wires in a circuit with 3-way switches are the neutral (usually white) and ground (usually bare copper or green). The neutral wire bypasses both 3-way switches but connects to the light fixture. The ground connects to the ground terminal on each switch and to the light fixture.

What color wires go on a 3-way switch?

The black hot wire connects to the far right switch’s common terminal. Red and blue wires link traveler terminals of both switches. The red wire, which is connected to the first switch’s common terminal, leads back to the fixture.

Can you put a motion sensor on a 4 way switch?

You cannot replace a 4-way switch with the sensor you have. The sensor you are using can either function as a 2-way or 3-way switch, it does not function as a 4-way switch.

What happens if you switch red and black wires?

If you switched the wires, what would happen? Red is positive charge, black is negative charge. If you aren’t running if you aren’t connected correctly.

Does red wire go to white or black?

Connect the green wire to the household ground wire (copper/bare wire). Connect your white wires together and secure with wire nut. Connect the red wire in the ceiling to the black wire in the light kit and the black wire in the ceiling to the black wire in the fan. Tuck the wires back into the box.

Which wire is hot when both are same color?

In most modern fixtures the neutral wire will be white and the hot wire is red or black. In some types of fixtures, both wires will be the same color. In this case, the neutral wire is always identified by some means.
