How do you hook up a block and tackle

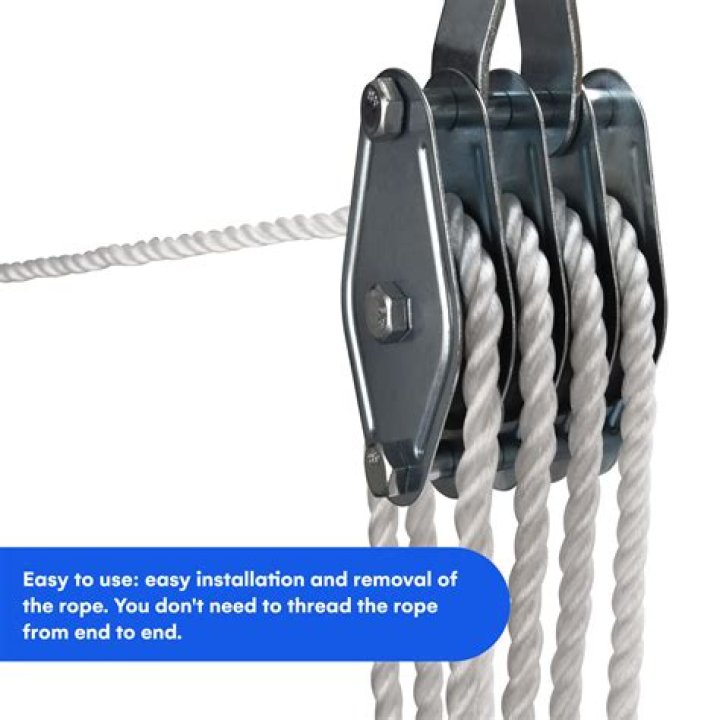

A block and tackle or only tackle is a system of two or more pulleys with a rope or cable threaded between them, usually used to lift heavy loads. The pulleys are assembled to form blocks and then blocks are paired so that one is fixed and one moves with the load.

How do blocks and tackles work?

A block and tackle or only tackle is a system of two or more pulleys with a rope or cable threaded between them, usually used to lift heavy loads. The pulleys are assembled to form blocks and then blocks are paired so that one is fixed and one moves with the load.

How much weight can a block and tackle lift?

Even though a block and tackle decreases the amount of force necessary to move an object, it does not change the amount of work. For example, a block and tackle with a mechanical advantage of four will allow you to lift a 4 lb. object with only 1 lb. of force.

What is an example of a block and tackle?

The definition of block and tackle is a series of pulleys. An example of a block and tackle is a method of hoisting up heavy blocks of metal using cables and pulleys.

Whats a block and tackle pulley?

block and tackle, combination of a flexible rope, or cable, and pulleys commonly used to augment pulling force; it can be used to lift heavy weights or to exert large forces in any direction.

How many strands of tackle are supporting the load?

(a) There are 4 strands of tackle supporting the load.

Does a block and tackle have any disadvantages?

Rigging. … A block and tackle rigging holds an advantage when the rope is pulled in the same direction that the load will be moved. It is rigged to disadvantage when it is being pulled in the direction opposite of where the load is to be moved (pulling down on a load to be lifted, for example).

How does a pulley make work easier?

A pulley system makes it easier to lift an object than lifting the dead weight by hand. A single pulley essentially changes the direction of the pull or force applied. When a person uses two or more pulleys in a system, then the system also multiplies the force applied besides changing its direction.

What force is required to lift the 100 pound weight?

If you want to lift something that weighs 100kg, you have to pull down with a force equivalent to 100kg, which is 1000N (newtons). If you want to raise the weight 1m into the air, you have to pull the loose end of the rope a total distance of 1m at the other end.

How do you keep a block and tackle from twisting?

Reduce wire rope length. …
Reduce the amount of load lifted. …
Eliminate odd-part reeving where the wire rope dead end is on the traveling block. …
Relocate the rope dead end at the boom in order to increase the separation between the dead end and the other rope parts. …
Increase sheave size.

Article first time published on

What is the difference between pulley and sheave?

A pulley is one of six types of simple machines. A sheave (pronounced “shiv”) is actually part of the pulley system. The sheave is the rotating, grooved wheel inside the pulley. This is the piece that the rope fits into.

What is the difference between a single pulley and a double pulley?

Any lifting apparatus that uses one pulley only is known as a simple or single pulley system, while any system that combines two or more pulleys is known as compound pulley. A simple pulley system using one wheel does not reduce the amount of force, but it does change the direction required to move the load.

How does a dual pulley work?

The purpose of a double pulley is to increase the mechanical advantage of the system, thereby reducing the effort required to move a given load. As more pulleys are added to a compound pulley system, the weight of the load is divided and the load becomes easier to move.

What is another name for a block and tackle?

winchcranedavitderricktacklesheavesheerlegscapstancranklifter

How do I get more power out of my winch?

If you want to double the power of your winch, or if the anchor point is too close to let out enough cable for a strong pull, use a snatch block to double the line. Using a snatch block will double your load capacity and will allow you to spool out more cable to reach the maximum rating of your winch.

Can you pull yourself up with a pulley?

Absolutely! Just like rowing a boat, the force you apply to move just needs to be stronger than any resisting forces. In this case, the resisting force is your weight. A pulley allows you to lift heavier objects, effectively lightening the load.
