How do you check a fuse box

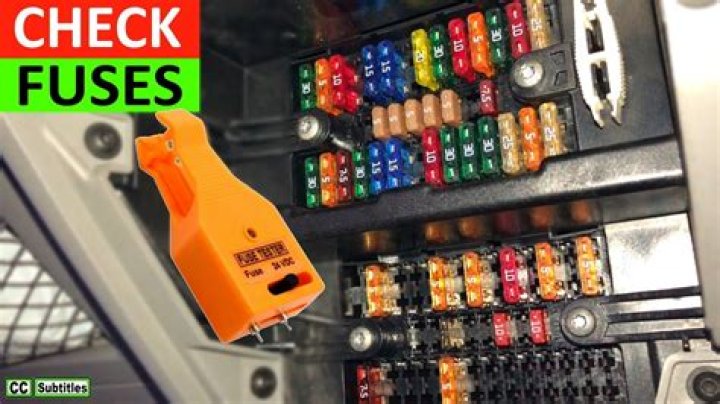

Touch the bare metal on top of each fuse with the test light’s probe. If the 12-volt test light illuminates, there is current at that connection. Touch the bare metal inside each fuse holder if you are looking for a spare fuse location that has a current.

How can you tell if a fuse box is bad?

Touch the bare metal on top of each fuse with the test light’s probe. If the 12-volt test light illuminates, there is current at that connection. Touch the bare metal inside each fuse holder if you are looking for a spare fuse location that has a current.

How do I know if my fuse box is working?

Open the box door and turn on the flashlight to inspect the fuses. Look closely at each fuse. The window on a good fuse will be clear. The window on a fuse that has “blown” to cut off the power and protect the circuit will be cloudy black or gray.

How do you test a fuse box?

Locate the small holes on each end of the blade-type fuses; those holes give you access to the blades inside the fuse. Insert the pointed tip of the red test lead first in one hole and then in the other. If you read 12-volts to ground on one end but not the other, the fuse is blown and needs to be replaced.

How do I know if my fuse box needs replacing?

1. ELECTRICAL PANEL IS OVER 25 YEARS OLD. …
2. SMELLS LIKE SOMETHING IS BURNING / BURNT. …
3. OFTEN EXPERIENCE BREAKERS TRIPPING. …
4. LACK THE OUTLETS THAT YOU NEED. …
5. ELECTRICAL PANEL IS WARM OR HOT WHEN TOUCHED. …
6. RUST HAS FORMED ON THE ELECTRICAL PANEL. …
7. PANEL MAKES STRANGE SOUNDS.

Can a fuse box go bad?

Automotive fuse boxes typically fail due to overheating. … If you have problems with your electrical system, you can check to see if your vehicle’s fuse box is bad. Keep in mind that you should always use caution when working with an automobile’s electrical system.

How do you tell if a fuse is blown without a multimeter?

To test a fuse without multimeter, take a flashlight equipped with a flat battery. Unscrew the bulb and get the battery. Place the fuse of one of the battery “blades” and the base of the bulb on the other side of the fuse. Put the bulb pad in contact with the second “blade” of the battery.

How much does it cost to replace a breaker box?

The typical cost to replace a breaker box is $1,975. Most homeowners spend between $1,787 and $2,207 for this job. As you can see, it pays to get estimates from expert electricians. A low-amp sub-panel typically calls from $1,000 to $2,000, while a 200-amp panel upgrade can cost you up to $5,000.

Is it illegal to have an old fuse box?

Are old fuse boxes illegal No, old fuse boxes are not illegal. However, if you do have an old fuse box in your property please consider health and safety.

Can you check a fuse in place?

Whilst it is easy to visually inspect the element in a glass fuse to see if it has blown, the majority of fuses have solid, non-transparent bodies that hide the element from view. To test if the fuse is blown, we require a multimeter. Once configured, a multimeter can measure the resistance of the fuse element.

Article first time published on

How much does it cost to upgrade a fuse box to a circuit breaker?

The price of upgrading the circuit panel varies depending on a wide range of factors. It typically costs $1,000 to $2,000 to replace a fuse box with a circuit breaker. Occasionally, it can cost more, especially if you need more electrical services.

How long does it take to change a fuse box?

The time taken to install a fuse box varies based on various factors. Remember, different properties have different fuse boxes. However, on average, the time taken to install a fuse box is 4 hours. In particular, this is when the wiring system is in good shape, and you don’t need any additional services.

Should fuse box be metal?

Until January 2016 new fuse boards had plastic outer casings however since that date new installations must be fitted with metal backed casings. This was the result of it being discovered that many house fires were caused by loose wires, inside the plastic fuse box, overheating and catching fire.

Can I replace a breaker myself?

You can replace the circuit breaker by just removing the panel cover. Once you have removed the cover then you can disconnect the wire from the faulty breaker and pull it out of the way. … Take note of how the breaker fits in the panel and locks into position so that you can put the new circuit breaker in correctly.

Does homeowners insurance cover electrical panel replacement?

As long as your electrical panel and wiring are all up to code, your homeowners insurance will likely include protection if your panel begins to malfunction or poses a significant risk to your home.

Can I replace the main breaker myself?

When amperage flow exceeds the rated capacity of the breaker, it trips (opens) and breaks the circuit, de-energizing it. The breaker can be reset to the closed position once the cause of the overload is rectified. … Circuit breakers can be replaced with common tools and basic mechanical skill.

How much is a fuse tester?

current productFuse BuddyFuse BuddyCalterm30 Amp Mini Fuse Tester30 Amp ATC Tester7-Way Towing Trailer Wiring Circuit Tester$2221$2072$2599(1)(2)(0)

Can a fuse go bad without blowing?

Due to the way fuses are engineered, the likelihood that a fuse would become faulty without blowing is pretty slim, but there are rare instances in which a fuse might appear completely fine, even though no current runs through it.
