How do you adjust superheat in a refrigeration system

To adjust the static superheat, turn the valve’s setting stem. Turning clockwise increases static superheat and effectively reduces refrigerant flow through the valve. Turning counterclockwise reduces static superheat and increases refrigerant flow.

How do you adjust superheat?

Turning the adjusting screw clockwise will increase the static superheat. Conversely, turning the adjusting screw counterclockwise will decrease the superheat.

What happens if superheat is too high?

Too high of a superheat can cause the heat of compression to increase, causing the temperature at the discharge valves to increase. If the temperature increases beyond its safe operating temperature, it will cause damage to the compressor.

What is a good superheat temp?

Superheat for most systems should be approximately 10F measured at the evaporator; 20F to 25F near the compressor. If the suction pressure is 45 psi, (which converts to 22F) and the suction temp is 32F, the system still has 10F of superheat.

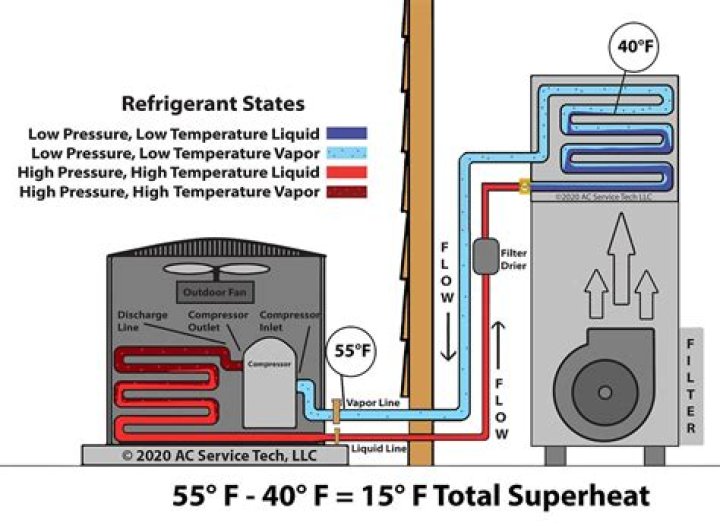

How do you calculate superheat?

The total superheat calculation is as follows: Degrees compressor in temperature (50 degrees) minus saturation temperature (23 degrees) equals total superheat (27 degrees). In the above example, the total superheat was calculated to be 27 degrees.

What does a low evaporator superheat indicate?

• Low superheat indicates an excess of liquid refrigerant in. the evaporator coil for the heat load present. • This means either too much refrigerant is entering the coil. or there is insufficient heat present to properly vaporize. the refrigerant.

What is superheat in refrigeration system?

Superheat occurs when you heat vapor above its boiling point. Let’s say that a refrigerant boils at 40 degrees Fahrenheit at a low pressure in the evaporator. Then you continuously heat the vaporized refrigerant, elevating its temperature to become a 50-degree vapor.

What should superheat be at compressor?

Compressor manufacturer’s like to see a minimum of about 20 degrees of superheat at the compressor inlet. This is to assure them that no liquid refrigerant is entering the compressor.

What causes low superheat and low subcooling?

LOW SUPERHEAT LOW SUBCOOLING This could be caused due to low airflow or due to plugged coils in an evaporator. When there is a limited amount of refrigerant entering the condenser, this could be the result of poor compression, an oversized metering device, or overfeeding.

Will low refrigerant cause high superheat?

Excessive or high superheat is an indication of insufficient refrigerant in the evaporator coil for the heat load present. This could mean that not enough refrigerant is entering the coil or this could also indicate an excessive amount of heat load on the evaporator coil.

Article first time published on

What are some typical problems when the evaporator superheat reading is too high?

Additional problems with high superheat could indicate a system undercharge, refrigerant restriction, moisture in the system, blocked filter-drier, or excessive evaporator heat loads.

Where is superheat measured?

SUPERHEAT The Vapor Line Temperature is measured on the large suction line near the condensing unit (A). Many refrigeration personnel will measure at the outlet of the evaporator but in HVAC you are more concerned with protecting the compressor than maintaining full capacity of the evaporator coil.

How do you adjust subcooling?

The temperature that you read with the thermometer should be lower than the saturated condensing temperature. The difference between the measured liquid line temperature and the saturated condensing temperature is the liquid subcooling. Add refrigerant to increase subcooling. Recover refrigerant to reduce subcooling.

Why is superheat vital at the end of the evaporator?

Why is it necessary to have superheat in the refrigerant vapor leaving the evaporator? To reduce the possibility of liquid refrigerant entering the compressor. … This way the refrigerant can give up its heat to the water and the surrounding air.

What is a good subcooling for 410a?

Most heating and cooling systems should operate at a superheat of 10F at the evaporator and between 20F to 25F at the compressor. if your HVAC system has a thermostatic expansion valve (TXV), the subcooling should be between 10F and 18F.

What is a good superheat for 410a?

For most systems, 20F to 25F should be measured near the compressor and 10F at the evaporator.

What is the best way to warm a refrigerant cylinder?

Also when removing refrigerant from a cylinder, a technician may need to warm a cold cylinder, do not use a torch or any other similar high heat device. The best practice is to place the cylinder in a bucket of warm (not hot) water. Remember: Do not expose the cylinder to temperatures over 125°.

What causes negative superheat?

When techs measure a negative subcooling (superheat) at the liquid line, it could be: You are looking at the wrong refrigerant PT scale. The refrigerant is mixed (somebody put something in on top of the original refrigerant).

What causes low discharge superheat?

The most common cause of low Discharge Superheat is flooding to the compressor. That condition will more than likely be associated with an Electronic Expansion Valve over feeding the evaporator. It could also point to an Accurator or check valve issue.

What is the difference between evaporator superheat and total superheat?

The superheat that the thermal expansion valve (TXV) controls is the evaporator superheat. This is measured at the outlet of the evaporator. The refrigerant gains superheat as it travels through the evaporator, basically starting at 0. … System superheat refers to the superheat entering the suction of the compressor.

How do you charge superheat?

1. THERE ARE TWO WAYS TO CHARGE A SYSTEM USING THE. SUPERHEAT METHOD: USING DRY BULB RETURN AIR TEMPERATURE. …
2. Purge gauge lines. Connect service gauge manifold to base-valve service ports. …
3. suction line service valve. Ensure the thermometer makes adequate contact and is insulated.

What can cause high subcooling and high superheat?

If there is not sufficient drop for the TXV to operate properly, liquid will back up in the condenser. This will cause the suction pressure and liquid pressure to be lower than normal, the total and evaporator superheat higher than normal, and normal to high condenser subcooling will be present.

What are the symptoms of an overcharged refrigeration system?

• Increased pressure throughout the system, characterized by high head pressure and high suction pressure with low suction superheat;
• Increased flooding of refrigerant to the compressor during off-cycle, which may cause flooded starts;

What happens if subcooling is too high?

If the subcooling is too high, the system will be overcharged, reducing performance, efficiency, and ultimately damaging compressor valves and start components.

What does low Subcool mean?

Low Subcooling is an indication that not enough refrigerant is contained or “packed” in the condenser. This can be due to undercharge, poor compression, or a metering device oversized or failing open (overfeeding).

How do you increase superheat fixed orifice?

1. If superheat is low and suction pressure is high, recover and remove refrigerant to increase the superheat.
2. If superheat is high and suction pressure is low, add more refrigerant to decrease superheat.

What is subcooling in refrigeration system?

Subcooling is a process that takes place inside of your condenser coil shortly before the refrigerant moves on to the evaporator coil. … At that point, the refrigerant has absorbed enough heat to change the liquid to a gas. This low-pressure gas then flows back to the condensing unit and enters the compressor.

How do you calculate superheat discharge?

The discharge superheat is calculated the same way as any other superheat/ subcool on a system. By measuring the discharge superheat you can subtract the suction superheat and that then leaves you with a figure of how much superheat the compressor has given through compression and mechanical /electrical inefficiencies.

What is K in superheat?

The superheat value should be 4-8K (Kelvin). … If the superheat value is too small of even 0K (Kelvin) this means that liquid is coming out of the evaporator and back to the compressor. As mentioned above this can cause damage to the compressor.
