How close can a switch be to a kitchen sink

Additionally, no point on the wall should be farther than 24 inches from an outlet in either direction (meaning 4 feet total between outlets), so you must have an outlet within 2 feet of the kitchen sink.

How close can you put a switch to a sink?

Any receptacle within 6′ (IIRC) must be GFCI protected. Since all of the kitchen countertop receptacles need to be GFCI protected anyway, that shouldn’t be a problem. If it is a bathroom sink counter top, it can not be farther than 36″ from the edge of the sink.

How far does a GFCI have to be from a sink?

Generally, all 15 or 20-amp, single phase, 125-volt receptacles “within 6 ft.” of a sink, tub or shower must be GFCI protected. For a sink, the measurement starts “from the top inside edge of the bowl of the sink”. For a bathtub or shower, the measurement starts at “the outside edge of the bathtub or shower stall”.

How close can an electrical switch be to a water source?

According to the National Electric Code, any receptacle within 6 feet of a water source needs to be protected with a GFCI.

Does a light switch near a sink need to be GFCI protected?

Notice, GFCI protection is only required for receptacles. Whereas AFCI protection, is required for all outlets in the mentioned areas. So while the light switch doesn’t have to be GFCI protected, it does have to be AFCI protected.

How far into a room can a light switch be?

However there is a legal requirement in place – it is dictated by the American Disabilities Association. This states that all light switches must be placed between 15 and 48 inches from the floor to ensure that wheelchair users can reach them.

How far apart do outlets need to be in the kitchen?

In the kitchen, countertop outlets should be no farther than 48 inches away from each other. This spacing is based on the average length of electrical cord found on most small kitchen appliances. The intent is to prevent homeowners from stretching cords too far and creating hazards.

Can you run water and electric in same trench?

If trench is to be a joint trench (shared with other utilities) the following separations must be maintained: 24 inches between gas and electric lines. 12 inches between water and electric lines. … 12 inches between communications and electric lines.

How close can an electrical outlet be to a bathroom sink?

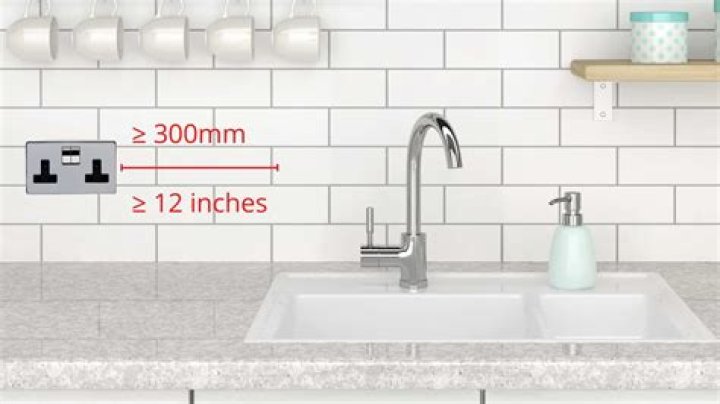

Outlet Receptacles You should keep the receptacle at least 6 feet away from the edge of a bathtub or shower and at least 1 foot away from sinks.

Does outlet under sink need to be GFCI?

The National Electrical Code, a minimum standard for electricians in the United States, allows for electrical outlets to be placed under the sink. However, all electrical outlets within a distance of 6 feet from the sink must have GFCI protection.

Article first time published on

Can an outlet be over a sink?

The National Electrical Code doesn’t have any specific requirement regarding the height of a receptacle above a vanity. The only thing the NEC requires is that there must be one outlet within 36 inches of the outside edge of the sink, and it must be in the wall adjacent to the basin or countertop.

Can you wire a switch to a GFCI outlet?

Place the switch in the hot wire going to the “line” side of the GFCI outlet. Run the neutral wire uninterrupted to the “line” side of the GFCI outlet. Connect ground wires as usual, switch and outlet.

What is the minimum distance between electrical outlets?

The US National Electrical Code, Section 210.52, states that there should be an electrical outlet in every kitchen, bedroom, living room, family room, and any other room that has dedicated living space. They must be positioned at least every twelve feet measured along the floor line.

How many outlets do you need on a kitchen countertop?

As mentioned in June, a minimum of two small-appliance branch circuits are required in kitchens. [210.52(B)(1)] Kitchen countertop surfaces have the same requirement. At least two small-appliance branch circuits are required to feed the receptacles that serve countertop surfaces in a kitchen.

How many circuits do you need in a kitchen?

A kitchen requires at least 7 electrical circuits to properly handle the basic elements. Something to keep in mind is if an appliance has a motor, it should have its own electrical circuit.

Where should a light switch be placed in a kitchen?

For light switches and garbage disposal switches that’ll be located above a kitchen counter, it’s standard practice to install them approximately 4 inches above the countertop. Since the standard height for most countertops is 36 inches, that places the bottom of the switch plate 40 inches from the floor.

What is code height for electrical switches?

Many builders position switch boxes so the bottom of the box is 48 inches above the floor. To satisfy the accessibility requirements of the Fair Housing Act, however, the switch itself should be no more than 48 inches from the floor.

What is code height for electrical outlets?

Electrical receptacle outlets on branch circuits of 30 amperes or less and communication system receptacles shall be located no more than 48 inches (1219 mm) measured from the top of the receptacle outlet box nor less than 15 inches (381 mm) measured from the bottom of the receptacle outlet box to the level of the …

Can you put a light switch near a bathroom sink?

1 Answer. National Electrical Code says that the receptacle must be within 3′ of the outside edge of the basin, but not more than 12″ below the top of the basin (210.52(D)). It also states that the receptacle can be installed in the countertop, but must not be in the face-up position (406.5(E)).

What is code for buried electrical wires?

Low-voltage (no more than 30 volts) wiring must be buried at least 6 inches deep. Buried wiring runs that transition from underground to above ground must be protected in conduit from the required cover depth or 18 inches to its termination point above ground, or at least 8 feet above grade.

How far down are water lines buried?

The general depth of underground water pipes is 12 inches below the frost line in your specific geographical area.

Can I run all utilities in one trench?

The pipes and cabling for gas, water, electricity and telecommunications can be run through one single trench — not only main lines, but service lines can also be installed.

Is under a sink considered a wet location?

Electricians say that under sink is not a wet area.

Should a dishwasher be plugged into a GFCI?

The 2014 NEC has a new requirement for ground-fault circuit interrupter (GFCI) protection of dishwashers in dwelling units. … The new requirement is for GFCI protection of “outlets” that supply dishwashers installed in dwelling-unit locations.

Do all kitchen receptacles need to be GFCI?

Kitchens: All receptacles serving countertop areas and any receptacle within 6 feet of a sink must have GFCI protection. Also, the receptacle supplying a dishwasher should be GFCI-protected.

Can I run a GFCI outlet from a light switch?

If for some reason you want/need the light circuit to be GFCI protected, you simply run the wire from the load side of a GFCI outlet, and wire it like any other light switch and lighting device. Note that the ground for both the income and outgoing is connected at the same ground point of the GFCI Outlet.

Is there a difference between GFI and GFCI?

GFCI vs GFI. Ground fault circuit interrupters (GFCI) and ground fault interrupters (GFI) are the exact same device under slightly different names. Though GFCI is more commonly used than GFI, the terms are interchangeable.

What is the maximum distance between outlets?

Since the maximum distance to a receptacle is 6 feet (1.8 meters), the maximum distance between two receptacles is doubled. Therefore, the maximum distance between receptacles is 12 feet (3.6 meters).
