Does my furnace have a thermocouple?

Does my furnace have a thermocouple?

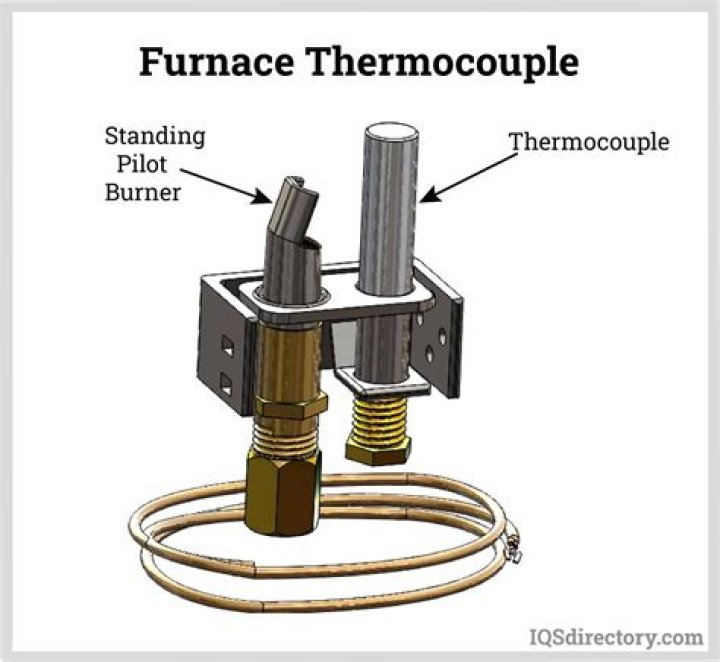

Your furnace’s thermocouple is usually located right in the flame of the furnace’s pilot light. Its copper tubing makes it easy to spot. Some thermocouples will look slightly different, so check your furnace manual.

Do all boilers have a thermocouple?

While most furnaces and boilers have a thermocouple, in some boilers and gravity furnaces a thermopile (pilot generator) will generate electricity to operate the gas control valve. You can distinguish this device from the metal tube of a thermocouple by the two wires in sheathing that lead to it.

What kind of fan does Honeywell furnace use?

As a working example we examine the Honeywell combination fan and limit control type L4064B. We also discuss the diagnosis & repair of common furnace operating troubles such as a blower assembly fan that runs continuously – it may be a simple switch setting.

How big are Honeywell Uni couple thermocouples?

Honeywell thermocouples are available in lengths of 18″, 24″, 30″, 36″, and 48″. Robertshaw is known for its Uni-Couple thermocouple Series. The unique design of the Uni-Couple allows for installation to almost all pilot burners.

How to check a Honeywell Furnace Fan limit switch?

Honeywell provides a very simple fan limit switch checkout procedure to be used after the switch is installed: Disconnect the fan motor circuit at the L4064. Turn on power and set thermostat to call for heat. Burner should come on and limit controller should shut burner off when plenum temperature reaches the limit set point.

When does the furnace blower fan come on?

The furnace blower FAN should come on when the plenum temperature has reached the FAN ON setting. Again watch the dial move on the FAN LIMIT control. The furnace blower FAN should turn OFF when the plenum has cooled down to the FAN OFF setting.

What kind of thermocouple do you need for a standing pilot furnace?

Honeywell, White Rodgers, and other manufacturers make universal replacement thermocouples, usually with a 30-millivolts (mV) rating for standing-pilot furnaces.

As a working example we examine the Honeywell combination fan and limit control type L4064B. We also discuss the diagnosis & repair of common furnace operating troubles such as a blower assembly fan that runs continuously – it may be a simple switch setting.

When do Honeywell thermocouple 24 inch boilers come out?

THERMOCOUPLE 24 INCH HONEYWELL REPLACEMENT FOR BOILERS, FURNACES, WATER HEATERS. . . . In stock on June 29, 2021.

Where is the thermocouple located on a gas furnace?

Continue to 2 of 5 below. A thermocouple typically is used on a gas furnace with a standing pilot, recognizable by its small, continuously burning flame. The tip of the thermocouple is positioned in the flame, keeping the tip heated at all times.
