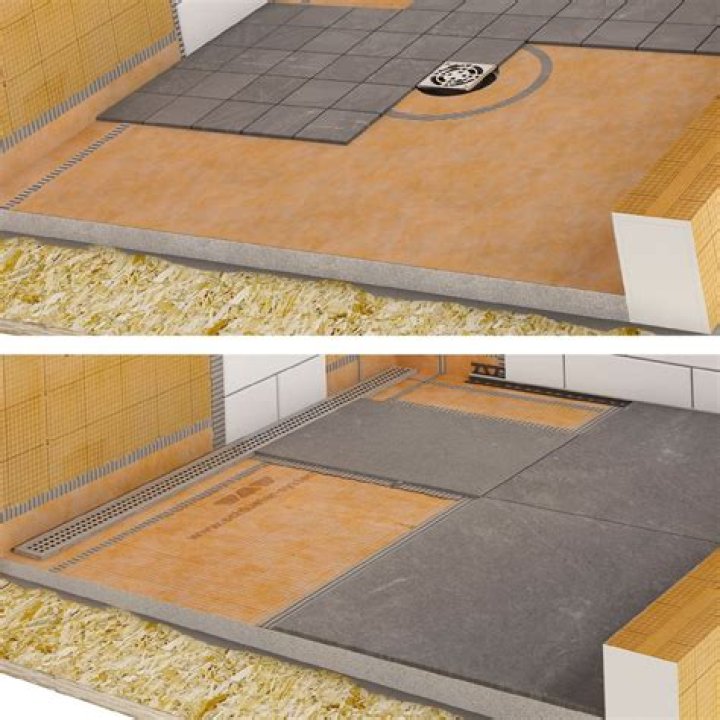

Can you trim Schluter Shower base

Yes. The KERDI-SHOWER- T/-TS/-TT trays can be cut to size to fit various applications. Ideally, the tray should be cut by equal amounts on all four sides to ensure a consistent height of the first course of wall tile. … The shower base can also be extended past the perimeter of the shower tray using dry pack mortar.

Can you cut Schluter Shower height?

The Schluter®-KERDI-BOARD-SC shower curbs can be cut to length using a utility knife or a handsaw. To modify the height, remove the desired amount from the bottom of the curb using a utility knife.

Is Kerdi shower pan sloped?

Kerdi-Shower-T/-TS/-TT is a prefabricated sloped shower tray with integrated Kerdi waterproofing. It is lightweight and made of expanded polystyrene. The shower tray eliminates the need for a mortar bed making installation quick and easy.

What sizes do Schluter shower pans come in?

The trays are available in 39″ x 39″ (100 cm x 100 cm), 55″ x 55″ (140 cm x 140 cm), 48” x 48” (122 cm x 122 cm), 36” x 72” (91 cm x 183 cm), 38” x 76” (97 cm x 193 cm) and 36” x 55” (91 cm x 140 cm) sizes.

How high does my shower curb need to be?

In the United States, building codes typically require tile shower curb height to be a minimum of two inches above the top of the drain. However, that doesn’t necessarily mean the curb itself has to be two inches high.

How narrow can a shower curb be?

The curb shouldn’t be less than 2 inches and not more than 9 inches deep when measured from the top to the curb.

How tall can a shower curb be?

In the USA, they adhere to the minimum shower curb height of two inches above the drain. The maximum height of a shower curb can be no more than nine inches. The building code ensures that the shower curb’s height is only a quarter-inch taller than the outside shower floor.

How thick are Schluter shower pans?

The shower tray, available in a range of sizes with thicknesses from 1-21/32″ (42 mm) to 2-3/8″ (60 mm), eliminates the need for a mortar bed, and is easy to install.

What is Schluter trim?

Schluter®-RONDEC is a finishing and edge-protection profile for tiled edges and outside corners of tiled surfaces. The reveal of the profile forms a symmetrically rounded corner along the surface edge. … Schluter®-DIADEC is an anodized aluminum finishing and edge-protection profile for outside corners of tiled surfaces.

What size tile can use for Schluter shower pan?

The minimum required tile format for use with DITRA-HEAT is 2″ x 2″ (50 mm x 50 mm).

Article first time published on

What size is a Schluter shower drain?

There are two drain placement options available for the shower tray: center or wall-adjacent, as seen in this image. The KERDI-SHOWER-LT/-LTS shower trays are available in 39” x 39” (100 cm x 100 cm), 48” x 48” (122 cm x 122 cm), 55” x 55” (140 cm x 140 cm), 36” x 72” (91 cm x 183 cm), and 38” x 76” (97 cm x 193 cm).

Is Schluter all set waterproof?

Schluter®-Systems offers a variety of systems for tile installation, including uncoupling and waterproofing membranes, shower systems, and building panels. … It is sag-resistant and ideal for setting tile on both horizontal and vertical surfaces.

Is Kerdi shower pan waterproof?

Unlike shower pan liners in traditional assemblies, KERDI is a bonded waterproofing membrane that allows for the direct application of tile with thin-set mortar. … on walls, creating a fully waterproof and vapor- tight enclosure.

How much can you cut off a Schluter shower pan?

Ideally, the tray should be cut by equal amounts on all four sides to ensure a consistent height of the first course of wall tile. However, slight differences can typically be made up with thin-set mortar when setting the floor tile.

Is a shower curb necessary?

Installed properly, you’ll be fine – but if you don’t plan it well, you could have some pretty big problems with water and your curbless shower. Without a curb, the shower water isn’t contained in the tub area and can get EVERYWHERE. … A curved shower wall can help direct the water to the drain as well.

What is a shower lip?

Shower curbs serve as the border between the floor of the shower pan and the bathroom floor. … They are common elements in custom-made showers and tie into the shower pan itself so that everything is completely waterproof and capable of standing up to continual exposure to moisture and use.

Does a shower curb need to slope?

The curb should not be level, and above all it should never slope away from the enclosure and toward the bathroom floor. Rather, it should have a 1/8” to 1/4” pitch toward the shower floor. If, instead, it slopes toward the bathroom floor, you will experience water leaking under the door and into your bathroom.

Which is better wedi vs Schluter?

The Wedi materials are less forgiving and fixes for mistakes in your cuts are not recommended. The Schluter system is more forgiving since you can use the Kerdi band, mortar, offcuts and Kerdi fix to.

Which Thinset for Kerdi shower pan?

Schluter SET™, ALL-SET™, FAST-SET™ or an unmodified thin-set mortar must be used to construct all KERDI seams to ensure watertightperformance of the system.

Is the Schluter system worth it?

Great product. It takes a little longer than the traditional mud shower bed and water-proofing methods, but it is worth it. … My shower is water-tight, and the sloped floor drains water perfectly. The finished product looks great.

Can you paint over Schluter membrane?

Yes you can paint over Kerdi board but you will need to give it a light coat of joint compound and do a little sanding.

Can you tile over shower pan?

Tile-Over Shower Pan Basics In a typical installation, the shower pan is set into a bed of mortar to level it and to secure it to the subfloor. … You cannot tile over standard polymer or fiberglass shower pans because they flex too much and will eventually crack the tile grout and possibly even the tile itself.

Can you use any drain with Schluter?

Can I use another manufacturer’s drain with your Schluter®-Shower System? The Schluter®-KERDI-DRAIN and Schluter®-KERDI-LINE drains are specifically designed to integrate with the Schluter®-Shower System. The Schluter®-Shower System 10-Year Limited Warranty is void if other drains are used.

What drains work with Schluter?

Schluter®-KERDI-DRAIN is a floor drain specifically designed to allow connections to Schluter-KERDI or other load bearing bonded waterproof membranes. The membrane is adhered to the large integrated bonding flange to form a waterproof connection at the top of the drain assembly.

How long does it take Schluter all set to cure?

I know, I said not to use modified thin-set to install tile over a membrane. Schluter has done a lot of testing in the lab and in the real world to develop a modified thin-set that cures completely in 12 hours when used to install tile over a membrane.

How soon can you walk on Schluter All set?

Wait 24 hours after the membrane (i.e., Schluter®-KERDI-BAND and Schluter®-KERDI) installation is complete to allow for the final set of the mortar and to ensure waterproof performance of the assembly at seams and connections before water testing.

Can you use Schluter all set over RedGard?

You can install thinset mortar and tile directly onto RedGard. For best results, mix mortar in small batches and apply it to the shower wall a small area at a time.

Can you put Kerdi membrane over drywall?

Yes! In fact, it’s advised to use this product on drywall in your bathroom before laying tile and other materials. … Installing Kerdi on your drywall provides protection against rot, mildew and mold growth. When Kerdi is installed properly, it can serve as an incredibly effective waterproofing layer.

Can you put Schluter over drywall?

Yes. Once you install KERDI over the drywall panels, they will be completely protected from the water and vapor in your tiled shower.

Can Kerdi membrane be installed over cement board?

Yes,Kerdi can be installed on drywall or cement board. However if installed on drywall it is only protecting one side. … All shower/tub areas should have concrete board (I prefer hardiboard).
