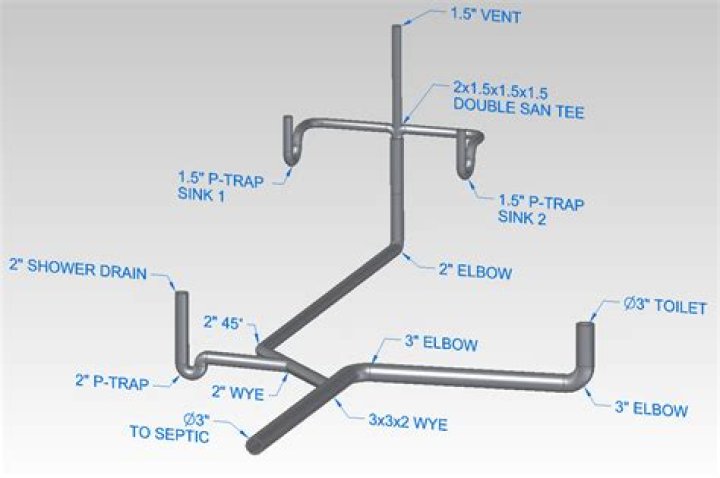

Can a wet vent run horizontal

A horizontal wet vent could have as few as two fixtures or as many as ten fixtures but not more than two fixtures of any type can be connected to the system. Each wet vented fixture drain shall connect independently to the horizontal wet vent.

What is horizontal wet venting?

908.2 Horizontal Wet Venting for a Bathroom Group. 1 through Section 908.2. … A bathroom group is defined in Chapter 2 as “any combination of fixtures, not to exceed one water closet, two lavatories, either one bathtub or one combination bath/shower, and one shower, and may include a bidet and an emergency floor drain”.

How far can a wet vent run?

✔ The maximum run, which is the length from the drainpipe to the vent pipe, is 42-inch for a 1½ trap arm, 60-inch run for a 2-inch trap arm, and a 72-inch run for a 3-inch trap arm.

Can I run a plumbing vent out the side of the house?

To fulfill the second function, the vent must terminate at least a foot above the roof and, as Fantastic Viewpoint advises, at least 10 feet from open doors or windows on your house or on a neighboring house. You can pass the vent through a wall instead of through the roof, but it must still rise over the roof.

Does a plumbing vent have to be straight?

Do Plumbing Vent Pipes Need to be Straight? Plumbing vents need to be straight on the vertical. This is necessary to avoid any vapor locks from occurring. When there is a bend in the vent pipe, moisture accumulates and is trapped.

When can you use a wet vent?

A wet vent can handle all the fixtures in two bathroom groups (a bathroom group is a lav, toilet, bidet, and tub or shower). To stay out of trouble with wet vents, go beyond code and use a 4-in. main horizontal waste line where possible.

How many fixtures does a horizontal wet vent have?

A horizontal wet vent could have as few as two fixtures or as many as ten fixtures but not more than two fixtures of any type can be connected to the system. Each wet vented fixture drain shall connect independently to the horizontal wet vent.

Where should a plumbing vent be located?

Vent pipes must be installed so they stay dry. This means that they should emerge from the top of the drainpipe, either straight vertically or at no less than a 45-degree angle from horizontal, so that water cannot back up into them.

Can a plumbing vent terminate horizontally?

To answer your specific question, yes, vent pipes can have horizontal runs, as long as there is no possibility of them becoming plugged with water. In other words, any water that gets into the vent pipe opening must be able to run freely all the way to the sewer, without creating a “trap”.

Does a toilet have to be vented outside?

“Does a toilet need a vent?” And the answer is yes, your toilet has to have a vent. For more information on the great importance of plumbing vents, read our plumbing vent article here. And the size of this vent pipe depends on your local plumbing code.

Article first time published on

What is the minimum size of a wet vent?

– THE WET VENT MUST BE SIZED BASED ON THE FIXTURE UNIT DISCHARGE INTO THE WET VENT. THE WET VENT MUST BE AT LEAST 2 INCHES IN SIZE FOR 4 DFU OR LESS, AND NOT LESS THAN 3 INCHES IN SIZE FOR 5 DFU OR MORE.

What is the code for a wet vent?

908.2 Horizontal Wet Venting for a Bathroom Group.

Can you wet vent a shower drain?

So yes the shower can also be vented by the wet vent along with the toilet. There is one major stipulation when wet venting multiple fixtures when a toilet is one of them: the toilet must be the last fixture connected to the wet vent.

Can a plumbing vent have bends?

Changes in direction of vent piping shall be made by the appropriate use of approved fittings, and no such pipe shall be strained or bent.

Does the vent go before or after the P trap?

However, we are a little bit confused as we have read places that state that the vent should always be AFTER the p-trap. After the p-trap the pipe will go 7 feet and join the main soil stack, which, of course, has a vent.

Can a vent pipe have an elbow?

Note: You may have vent piping, but you still cannot use the tight 90-degree elbow — sometimes called a “vent elbow” — if the joint is below the water level, which is usually at the level of the sink.

Does the UPC allow wet venting?

Any combination of fixtures within two bathroom groups located on the same floor level shall be permitted to be vented by a horizontal wet vent. … Each fixture drain shall connect horizontally to the horizontal branch being wet vented or shall have a dry vent.

Can you wet vent a water closet?

Traditional wet venting is the venting of one or two bathroom groups. A bathroom group includes all the fixtures located within a bathroom, such as a water closet, lavatory, bathtub, shower or bidet. All these fixtures can be vented with a single dry vent. … The wet vent can serve as the drain for another fixture.

Can you wet vent a washer?

You can not wet vent a washing machine drain or for that matter anything other than a bathroom fixture or fixture group. Get him back and make sure the work gets inspected. why cant you wet vent a washer drain? Because washing machines discharge waste under pressure.

How many toilets can you have on a 3 inch horizontal drain?

There is one answer. The International Plumbing Code requires 5 Drainage Fixture Units in a bathroom group. It’s good for 20 DFU’s or 4 bathroom groups.

Can a floor drain be wet vented?

Vent Connections The only fixtures that may serve as the wet venting fixture for the bathroom group are the bidet, shower, bathtub, and lavatory(s). This excludes the water closet, floor drain, or any fixtures outside the bathroom.

Can plumbing vents be combined?

all plumbing vents combined into one, thru roof. Re: Minimizing Roof Penetrations: Can vents be combined? Yes, but in most areas the area(s), not diameters, of the final penetration(s) has to equal the area of the main sewer line into the building.

How close does the vent need to be to the toilet?

According to the UPC, the distance between your trap and the vent should be no more than 6 feet. In other words, for the vent to work properly, it needs to feed into the drain line within 6 feet of the trapways that connect to it.

Can a plumbing vent go down?

Re: Can a plumbing vent go down? as far as i’m concerned, yes. as long as any condensation can drip somewhere, there should be no problem. we run island vents for kitchen/bar sinks all the time.

How far can a vent be from a fixture?

The only vertical pipe of a combination drain and vent system shall be the connection between the fixture drain and the horizontal combination drain and vent pipe. The maximum vertical distance shall be 8 feet (2438 mm).

Can you offset a vent pipe?

For this system to function effectively there cannot be any offsets in the waste stack portion. Once the highest branch interval is connected to the stack, the vent portion may contain offsets, provided such offsets are at least 6 inches above the branch interval connection.

What happens if a toilet is not vented properly?

Poorly-vented drain lines will not be able to effectively move wastewater and solid waste out of your building. This could lead to problems such as overflowing drains, backed-up toilets, and similar plumbing issues.

How do you vent a toilet without a vent pipe?

Don’t worry if you do not have a vent pipe in your house, or if it is blocked and you can’t fix it. Instead of thinking about massive construction projects, you can use an Air Admittance Valve, well-known as a cheater vent. You may have heard that they are illegal and unreliable, but you shouldn’t believe every rumor.

How do you vent a bathroom with no outside access?

Install a recirculating fan in a half-bath. This type of bath fan doesn’t exhaust air to the exterior. …
Reduce noise with an inline fan. …
Vent under the floor to get outside. …
Build a soffit to hide ductwork. …
Install commercial ductwork.

How must the vent connect to a wet venting fixture?

Vent Stacks. shall have a vent stack. A soil-or-waste stack that serves as a wet vent does not require a vent stack. The vent stack required by Sentence (1) shall be connected to a vertical section of the soil-or-waste stack at or immediately below the lowest soil-or-waste pipe connected to the soil-or-waste stack.

Can a washer and toilet share the same drain?

As mentioned it should be put through your local authority but if your drainage under the washing machine is accessible and at least 3” it is possible. Running the toilet straight into the wash machine drain isn’t possible if it discharges through a floor waste (gully).
