Can a fuse test good but be bad?

Can a fuse test good but be bad?

Due to the way fuses are engineered, the likelihood that a fuse would become faulty without blowing is pretty slim, but there are rare instances in which a fuse might appear completely fine, even though no current runs through it.

What should fuses be tested with?

To test if the fuse is blown, we require a multimeter. Once configured, a multimeter can measure the resistance of the fuse element. Resistance is measured in Ohms ‘Ω’. The following tutorial uses a digital multimeter, however the same principles apply when using an analogue multimeter (ie.

Can a fuse show continuity and still be bad?

Yes, it may show continuity, but the fuse can open under the current load of the heater.

How to choose the right fuse for an electrical panel?

We explained the different factors of fuse to choose the right type for a electronics or electrical panel with our step-by-step guide. 1. To protect electrical, electronic components and equipment from costly damage caused by overcurrents. 2. To isolate subsystems from the main system once a fault has occurred.

What are the different ratings of plug fuses?

Plug fuses screw in and come in 15, 20, and 30-amp ratings. These fuses supply the branch circuits in your home to run lights, outlets, and appliances. Learn what each of these fuses is and how to test each of these fuses below. Plug fuses are common fuses used in a home’s fuse panel.

How do you test the resistance of a fuse?

By setting the selector switch to ohms and setting it on a lower range, you can test the resistance between the two points of the fuse. This will measure the resistance of the fuse link, if intact. When working with anything electrical, shut the power off to the device that you’ll be working on and check with a tester to make sure it is not live.

What are the different types of fuses used?

Fuses come in different styles, cartridge, and screw-in. The Ferrule-type cartridge fuse is generally used for the main feeder and range protection. Normally, range feeds will have 50-amp fuses, and the main fuses are generally 60 amps, being more common in older homes. Plug fuses screw in and come in 15, 20, and 30-amp ratings.

What should all fuses make test light?

If the ignition switch is ON but the engine is not running, all the fuses should read about 12V or the test light should glow. The switch to turn things on is downstream of the battery and the fuse. Tail lights should be connected around the ignition switch directly to the battery so they can be turned on without the ignition being on.

Can a fuse be replaced with a lower rating?

Never replace a blown or suspect fuse with one of a higher rating. The rating ensures that the current can pass through the wiring safely. Always replace a fuse with the same rating as (or a lower rating than) the old one. Thanks! Never test a fuse on equipment that is still on.

What happens when you test a fuse with a multimeter?

Next, put one lead on each end of the fuse and check the reading. If the reading is close to the one you got when you touched the positive and negative leads, the fuse is fine. If the fuse is blown, the meter will not read anything at all, or the meter may say “Open Loop” or “OL.”.

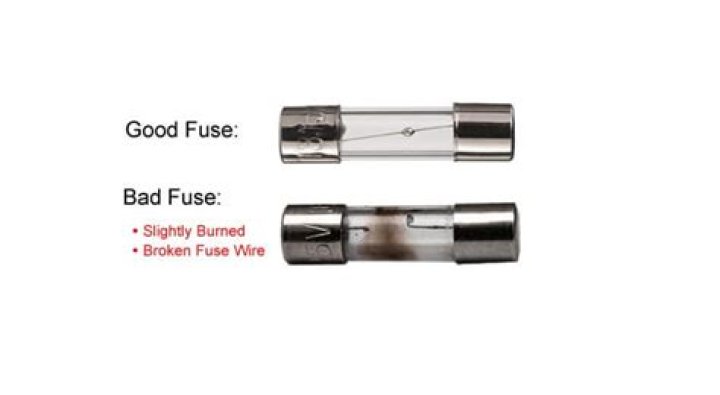

How can you tell if a fuse has melted?

First, connect one probe’s wire to the battery’s (-) terminal. Then, touch one contact pad of the fuse with the second probe’s wire. Repeat this action with the second contact pad. If one fuse terminal has a voltage and the other does not, it means the fusible element has melted.
