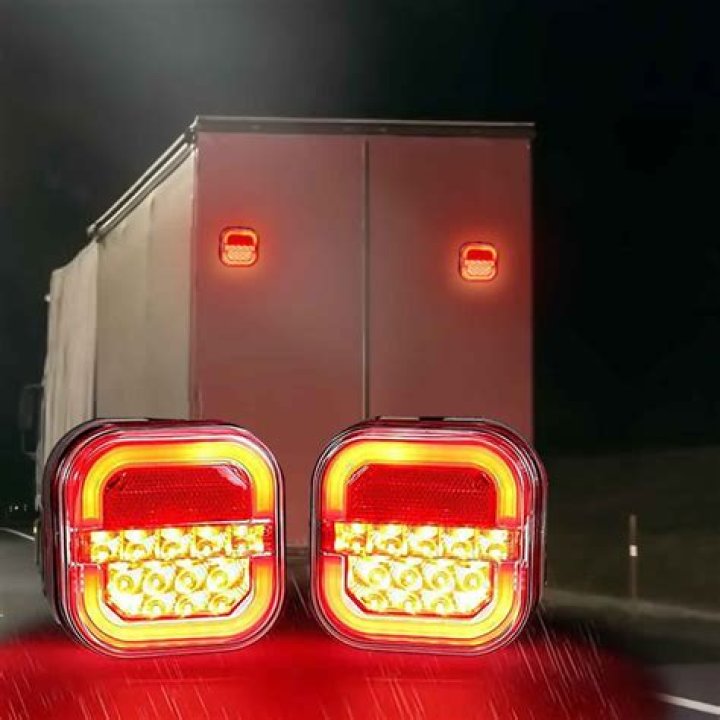

Are LED trailer lights better

LED trailer tail lights are brighter, which means other vehicles will see your brake lights better in the daytime. … LED units also illuminate faster; when a vehicle’s brake lights are applied, LED lights on the trailer respond instantaneously and provide a brighter, more focused illumination.

Do LED trailer lights fail?

Cause: LEDs don’t draw as much current as the original trailer lamps. This causes the trailer light driving circuit to cycle on/off or the lighting control unit (LCU) to report a trailer lamp failure.

Can you mix LED lights with regular lights on a trailer?

Expert Reply: It is not recommended to mix LEDs with incandescent lights on a trailer. … LEDs require much less power than incandescents. If one of each where on the same circuit, the draw from the incandescents could damage the LEDs.

Do LED trailer lights need special wiring?

Expert Reply: If you are looking at and LED Trailer Tail Light like part # STL8RB, then you will not need a converter to make it compatible with the 4-Way Wiring Harness on your truck. … The 2 extra wires on the tail lights are white and they are used for the ground.

Are LED lights better than regular lights?

Why are LED lights better than normal lights? LED lights outperform other forms of lighting in every area. They are more efficient in their use of electricity. They are cooler, don’t waste energy as heat, and therefore safer.

Are all 7 pin trailer connectors wired the same?

Helpful Expert Reply: Yes, there is only one type of 7-way blade connector.

Can you replace bulbs in LED trailer lights?

You can certainly replace all of the incandescent bulbs in your tail lights and marker lights with LED bulbs. … LED bulbs offer many improvements over incandescent (standard) bulbs. First, they are typically brighter than incandescent bulbs. This will make your trailer more visible to other drivers at night.

Will trailer lights work if not grounded?

In some cases trailer lighting will ground through the hitch ball but that’s typically only if the actual ground circuit is insufficient. This is not an ideal setup. It needs to ground through the wiring of the trailer harness. … Otherwise you’ll get intermittent lighting functions when your trailer hits bumps.

Why are my LED trailer lights dim?

Most often the root cause for issues with trailer lighting is a weak ground. … Strange as it may sound, a loose or rusty/corroded ground can cause a vehicle’s trailer wiring harness to badly misbehave and shut down some functions.

How many amps do trailer lights draw?

Unless they areLED lights, tail lights, clearance lights, and marker lights draw 7 to 10 Amps. Brake lights and turn signals can be combined on a single circuit.

Article first time published on

Are LED lights really worth it?

Do LEDs save energy? LEDs use much less energy than incandescent bulbs because diode light is much more efficient, power-wise, than filament light. LED bulbs use more than 75% less energy than incandescent lighting. … Another advantage of LEDs is the “hassle factor.” LEDs last a lot longer than a regular bulb.

Do LED lights burn out?

Unlike incandescent light bulbs, LEDs don’t produce light using heat. This is part of what makes them so energy efficient. The downside is that their components can be sensitive to overheating, which can cause them to burn out prematurely.

Are LED lights bad for your eyes?

The short answer to this is no, they won’t hurt your eyes. This concern comes from the LED bulb’s use of blue light. … It can only become a problem for people who have existing eye conditions. LEDs use the same amount of blue light that our smartphones, computers, and tablets use.

Why is one trailer light brighter than the other?

Why would one tow light shine bright and the other barely light up? … Many times the issue with a dim light on one side or the other is caused by a poor ground connection. You will want to inspect all of the ground locations as well as the ground wires coming from each light.

How do I stop my LED lights from flickering?

1. Always drive LED products using an LED power supply that’s designed for the job. …
2. Make sure all your LED products are compatible with the control circuits and power supply you’re using.
3. Check for loose wiring and other faulty connections. …
4. Consider using a constant-current LED driver.

Can you use regular trailer lights on a boat trailer?

Old conventional incandescent bulbs on the boat trailer aren’t waterproof, but modern LED lights are waterproof. However, you can easily waterproof the lights and connections by yourself by spending some time & money on that. Staying safe while trailering the boat means making sure your boat trailer lights are working.

How do you check LED trailer lights?

Have an assistant remove foot from brake & turn on the left hand turn signal. The test light should illuminate, blinking as the turn signal would. Touch the test light to the “12V+” pin. Your test light should illuminate, proving that you are receiving voltage from the vehicle battery & that your ground pin is good.

Can I tow a trailer with electric brakes without a brake controller?

The answer is, no. Electric trailer brakes do not work without a brake controller. If your trailer is equipped with electric brakes, you will need a brake controller to tow. … These are a hydraulic braking system that uses the trailer’s own weight and momentum to actuate the brakes.

Does a 7 pin trailer plug control brakes?

What is difference between a 4 pin and 7 pin trailer connector? … A 7-Way has these functions and a 12 volt circuit, a circuit for electric trailer brakes (requires a brake controller in the vehicle), and a reverse light or auxiliary power circuit. There are other types of connectors as well.

What is the black wire on a 7 pin trailer plug?

The black wire of the Hopkins 7-Way Molded Trailer Wire Connector # HM20048 carries the 12 volt accessory circuit. This is the circuit that will typically power interior lights or charge a trailer’s battery.

What color should trailer clearance lights be?

FunctionColorCodeFront clearance lightsAmber (yellow)P2, PC, P3, or PC2Rear upper body markersWhiteBumper bar markersAlternating red and whiteRear lower body markersAlternating red and white

Where do markers go on trailer lights?

For front side marker lights you must have one on each side of your trailer and as far toward the front of trailer as possible. These too must be 15 inches or more above the ground. So, yes, you can mount them about 14 inches above the bottom edge of your trailer.

What color is the ground wire on a trailer?

Note: The ground wire color on all trailer plug types is always white. Other colors vary in function, depending on the configuration.

When I hit my brakes my tail lights go out?

Expert Reply: It sounds like you have a bad ground connection. If all ground connections are not making good contact to bare metal, when the brake pedal is pressed and the tail lights are on, the increased amperage draw will make this problem show up.

Why is only one side of my trailer lights working?

Poor ground connections are the most common culprit of trailer wiring issues. The lights will have either a ground wire or they will ground through the mounting hardware. … With the trailer connected to the tow vehicle, use your circuit tester to test the left side stop/turn and running light circuits.

How do you ground a trailer light?

Each lamp needs to be grounded either through its mounting studs being in direct contact with the trailer frame or by having a jumper wire ran from the lamp to the trailer frame. Ground the trailer connector at the front of the trailer, which will use the trailer frame as a ground wire.

Do trailers ground through the ball?

In some instances the trailer will try to ground itself between the hitch ball and coupler if the trailer’s own ground connection is weak or poor. The best solution is to re-establish the trailer’s own ground connection. Find the trailer’s main ground wire at the trailers electrical connection.

What is the white wire for on trailer lights?

The White Wire is the “Ground” or “Negative” wire connecting to the vehicle battery “minus” side. The trailer wiring diagram shows this wire going to all the lights and brakes. Also, it must connect with things (if included) that use the Aux Power and Back-up lights too.

Do leds need ground?

The short answer is: no, they don’t need to be grounded, but it is way safer if they are. Many, if not all, electrical codes require installed light fixtures of all types to be grounded. Yes, all LED’s have to have a ground circuit.

How much can you tow without trailer brakes?

As a general rule, it is not safe to tow a trailer without trailer brakes that is over 50 feet and 4,000. Whether you can pull a trailer safely without trailer brakes will depend on the size and weight of the trailer and the size of the tow vehicle.

Can you power a winch through trailer plug?

Can a Trailer Connector be Used to Power an Electric Trailer Winch Electric winches should have a direct connection to a battery for power. The wiring in a trailer connector, like a 7-Way, and an adapter like #HM47675, is not a heavy enough gauge to effectively power a winch.
